RT Series Screw Terminal 12 Circuit Dual Level Busbar
Model #
20800611
Mfg #
8030
$14.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
RT Series Screw Terminal 12 Circuit Dual Level Busbar
Model #
20800611
Mfg #
8030
$14.99
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
SEAFIT
$1.99
-
$2.99
Price reduced from
$11.49
to
-
Price reduced from
$16.49
to

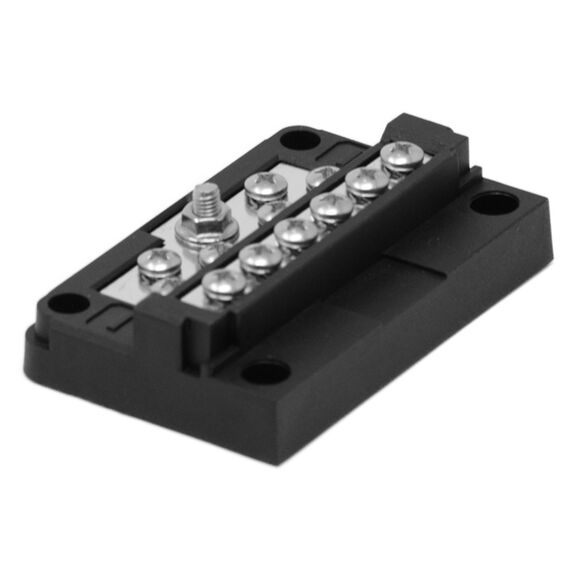

EGIS MOBILE ELECTRIC RT Series Screw Terminal 12 Circuit Dual Level Busbar
Egis Mobile Electric RT series dual-level busbar offers exceptional ground return integration with RT series fuseblocks and can also be used as a standalone unit. 12 circuit design allows for greater install flexibility, and stainless screw terminals ensure long-term corrosion-free operation.
Features:
- Corrosion-resistant stainless steel self-locking hardware
- Constructed of high-temperature materials
- Compact footprint, great for small installation spaces
- Nominal Voltage (Vdc): 12Vdc / 24 Vdc
- Voltage Range: 0-36Vdc
- 12 Circuits
- Modular Design Connects To Egis Mobile Electric RT Series Fuse Blocks
- Maximum Continuous Current Entire Block: 100 Amp
- Input Ring Terminal Hole Size: M5 / #10 / 1/4"
- Hardware Material: Stainless Steel Self-Locking
- Max Operating Temperature: 85 °C (185F)
- Min Operating Temperature: -40C (-40F)
- Mounting Holes Size: #8/M4
Amperage
100 Amps
ISO Approved
IP20
Mounting Hardware
4x #8 Screws Included
Type
Busbar
Warranty
Four Years
