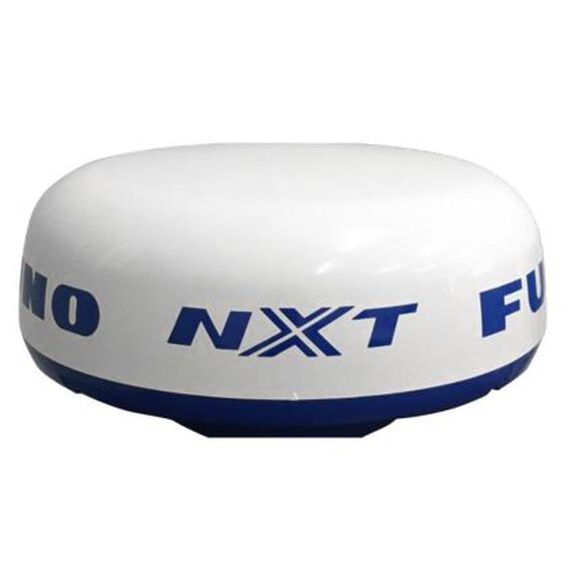

Furuno DRS2DNXT 19" Solid-State Doppler Radar w/Target Analyzer & Fast Target Tracking f/NavNet TZtouch, TZtouch2 & TZtouch3

Furuno DRS2DNXT 19" Solid-State Doppler Radar w/Target Analyzer & Fast Target Tracking f/NavNet TZtouch, TZtouch2 & TZtouch3

The Furuno DRS2DNXT represents the next step in radar evolution, combining solid-state pulse compression technology with Doppler-based Target Analyzer™ and Fast Target Tracking™ in a compact 19-inch radome. Compatible with all generations of Furuno's NavNet TZtouch systems, it is well-suited for smaller vessels or as a capable backup radar that shares the same advanced feature set as larger NXT models.

The exclusive Target Analyzer™ function was a world first: echoes dynamically change color based on approach direction. Targets moving toward your vessel are highlighted in red, while stationary or retreating targets appear green. This color-coding works independently of your own vessel speed and the speed of target vessels, providing rapid situational awareness with minimal interpretation effort. Target Analyzer™ can significantly improve safety in congested or low-visibility conditions.

Fast Target Tracking™ allows any selected target to display its speed and course vector within seconds of selection. With Doppler technology continuously monitoring surrounding vessels, any craft approaching yours will automatically generate a target vector and can trigger an audible alarm, simplifying collision avoidance decisions and reducing reliance on manual ARPA input.

Furuno's exclusive RezBoost™ beam-sharpening technology, applied here for the first time in a radome radar, allows the DRS2DNXT to achieve the effective sharpness of a 2-degree beam width when set to MAX — dramatically improving target separation and coastal detail resolution for a 19-inch dome antenna. Additionally, a dedicated bird mode automatically adjusts radar settings to help locate flocks of birds, a valuable tool for fishing applications.

Key Features

• Solid-State Radar with Pulse Compression
• Target Analyzer™ utilizing Doppler technology — approaching targets display red, retreating targets display green
• Fast Target Tracking™ — speed and course vector displayed in seconds
• RezBoost™ Beam Sharpening — achieves effective 2-degree beam width at MAX setting
• Dedicated Bird Mode for fishing applications
• 25W output power in a compact 19-inch radome
• 5.2-degree standard beam width
• Maximum range of 48 nautical miles
• X-Band operation
• Compatible with NavNet TZtouch, TZtouch2, and TZtouch3
• Operates on 12–24 VDC
• Signal/Power cable sold separately (10M, 15M, 20M, 30M options available)
