This product is not longer available, we recommend a similar product instead:

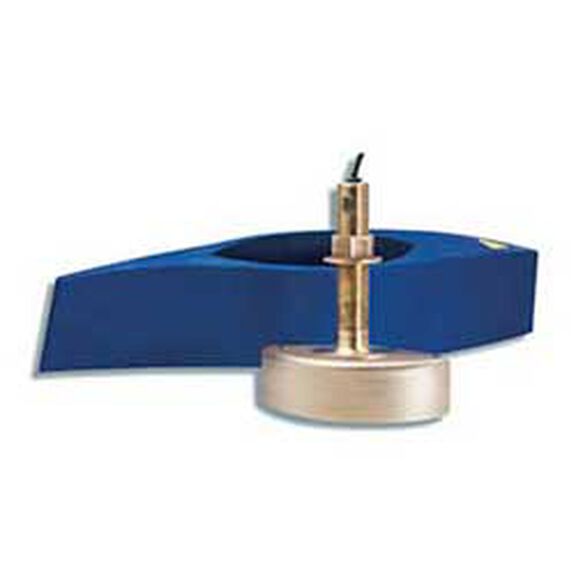

Airmar B258 Thru-Hull Dual Frequency Transducer
Model #
13178488
Mfg #
010-10703-20
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Airmar B258 Thru-Hull Dual Frequency Transducer
Model #
13178488
Mfg #
010-10703-20
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
This mid-range 1 kW 8-pin transducer with a narrow beam is good for deep water and bottom definition.
With 1,000 watts of power and a traditional 50/200kHz frequency package. Transducer kit comes with installation instructions. When using with a 6-pin Garmin sounder, transducer adapter cable part number 010-11612-00 is required.
Specifications
- Style: Thru-hull with fairing block
- Cable Length: 39'
- Connector: 8-pin
- Hull Deadrise Angles: 0-26°
- Monitors: Depth/Temperature
- Material: Bronze
- Transmit Power: 1kW
- Frequency: 50/200kHz
- Max. Depth: 2,200'
- Beamwidths: 14° x 23°/3° x 5°
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Type
Thru-Hull
Beam
5x21 Degrees
Deadrise Angle
0 to 26 Degree
Frequency
50/200kHz
Material
Bronze
Maximum Depth
2200 Feet
Sonar
Depth
,
Temperature
Transmit Power
1000 Watts
Type
