This product is not longer available, we recommend a similar product instead:
Clearance

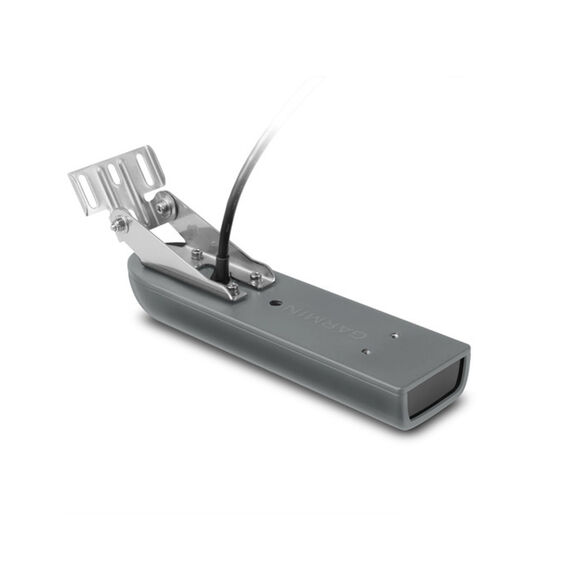

CV23M-TM 8-Pin Transom Mount Transducer
Model #
18917583
Mfg #
010-12760-00
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
CV23M-TM transducer is perfect for coastal and offshore fishermen who want CHIRP traditional sonar and CHIRP ClearVü scanning sonar. This transom mount transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features mid-band CHIRP traditional sonar (80-160 kHz) and has a power rating of 600 W. The CHIRP ClearVü (260/455 kHz) element has a power rating of 500 W. It also includes a built-in fast response temperature sensor.
For installation, follow the included instructions carefully to avoid damaging your boat.
Beam
Traditional (24-13)
Deadrise Angle
0 to 70 Degree
Frequency
CHIRP Mid-band (80-160 KHz)
,
ClearVu CHIRP 260 KHz (245-275 KHz) and 455 KHz (445-465 KHz)
Material
Nylon
Maximum Depth
2300 Feet
