This product is not longer available, we recommend a similar product instead:
Clearance

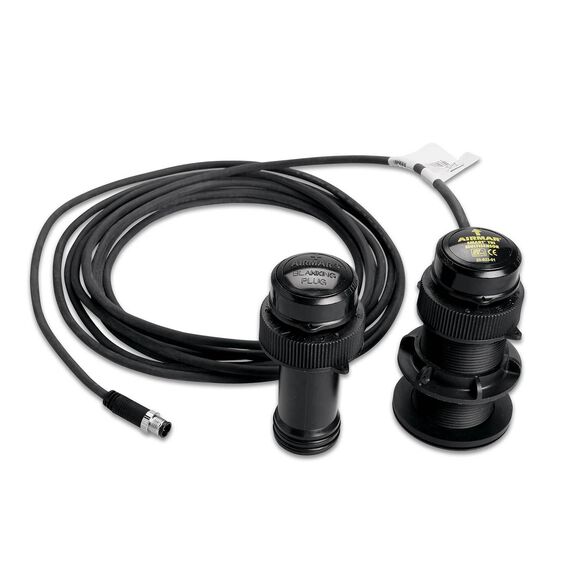

DST800 Thru-Hull Traditional Transducer
Model #
9924218
Mfg #
010-11051-00
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
DST800 is a Smart™, Triducer® NMEA 2000 Multisensor that offers depth, speed, and temperature functions in one compact thru-hull fitting.
Digital signal processing inside the housing provides depth, speed, and temperature data to a chart plotter, radar screen, or digital display, eliminating the need for a dedicated depth sounder. One hole in the boat's hull makes this Triducer® Multisensor attractive to both boatbuilders and boat owners. The wide port-starboard, fan shaped beam is able to find bottom even when installed on high-deadrise hulls or on sailboats when heeled.
Key Features
- The all-in-one Smart Sensor
- Depth, speed, and temperature in one compact housing
- 235 kHz frequency prevents mutual interference with other echosounders on the vessel
- Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy
Specifications
- Material: Plastic
- Frequency: 235kHz
- Transmit Power: 100W (RMS)
- Beamwidth: 10° x 44°
- Maximum Depth Range: Up to 330'
- Hull Deadrise Angle: Up to 22°
- Supply Voltage: 9V DC to 16V DC
- NMEA 2000 Load Equivalency Number (LEN): 4
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Type
Thru-Hull
Beam
10x45 Degrees
Frequency
235kHz
Material
Plastic
Maximum Depth
500 Feet
Sonar
Depth
,
Temperature
Transmit Power
100 Watts
Type
Thru-Hull
