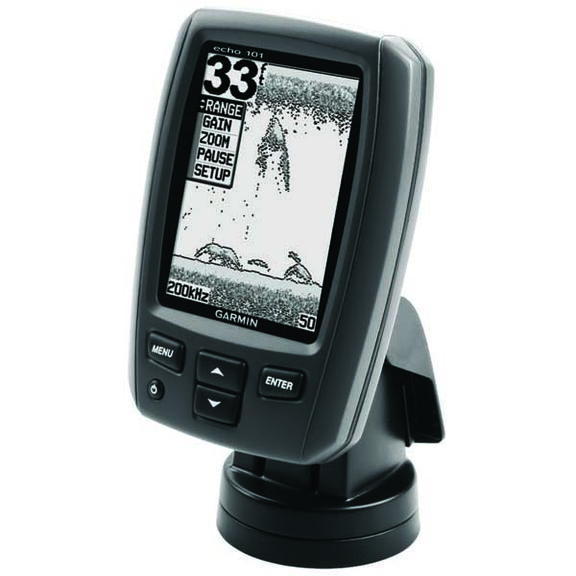

echo™ 101 Fishfinder

Power in a Compact Package

• 4-inch gray scale display
• Garmin HD-ID sonar technology
• Transmit power (RMS) 200W
• Maximum depth: 1,500 feet
• Beamwidth to 60 degrees

See More for Your Money

The powerful, simple-to-use echo 101 has the compact, space-saving design and advanced sonar features you'd expect to find only on much higher-priced units. The built-in Garmin advanced HD-ID sonar gives you excellent target separation and fish arch definition on the crisp 4-inch, 256 x 160 pixel grayscale display. Single-beam (200 kHz) transducer with 200W (RMS) power output dives down to a maximum depth of 1,500 feet.

Save Valuable Space

Its compact, space-saving design makes echo 101 the perfect companion for small craft. Includes a quick-release tilt/swivel mount, transducer and versatile transom and trolling motor mount kit to make installation a snap.

Specifications:

Physical & Performance

• Unit dimensions, WxHxD: 4.1" x 5.8" x 2.8" (10.4 x 14.7 x 7.1 cm)
• Display size, WxH: 2.38" x 3.21" (6.04 x 8.15 cm); 4” diag, (10.16 cm)
• Display resolution, WxH: 160 x 256 pixels
• Display type: 8-level grayscale FSTN
• Weight: 9.5 oz (270 g)
• Waterproof Rating: IPX7

Features & Benefits

• Audible alarms: Yes
• Dual-frequency (50/200 kHz) sonar capable: No
• Dual-beam (77/200 kHz) sonar capable: No
• Split-screen zoom: No
• Ultrascroll (displays fish targets at higher boat speeds): Yes
• Fish Symbol ID (helps identify fish targets): Yes
• AutoGain Technology (minimizes clutter, maximizes targets): Yes
• Whiteline (indicates hard or soft bottom): Yes
• Adjustable depth line (measures depth of underwater objects): No
• A-scope (real time display of fish passing through transducer beam): No
• Bottom lock (shows return from the bottom up): No
• Water temperature log and graph: No
• Water temperature sensor included: Yes
• Water speed capable (displays speed on water): No

Other Specs

• Frequencies supported 200 kHz
• Transmit power 200 W (RMS)
• Voltage range 10-20V DC input
• Maximum depth 1500 ft @ 200 kHz, freshwater
  (Maximum depth dependent on transducer, water, salinity, bottom type and other water conditions.)
• Cone angle 60º (single beam)
• Additional: HD-ID Tracking Technology
