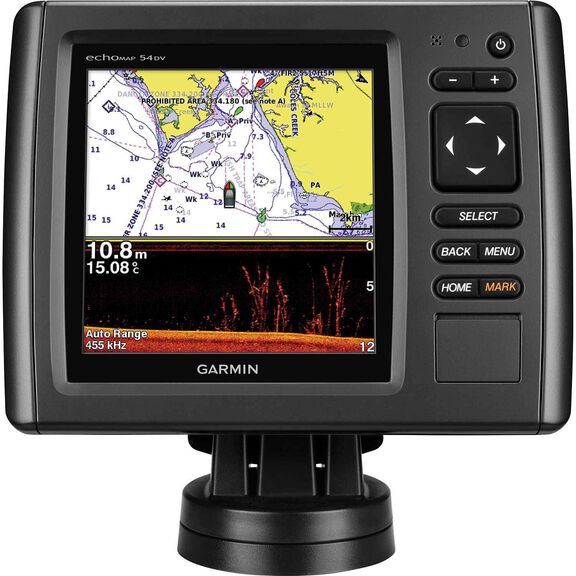

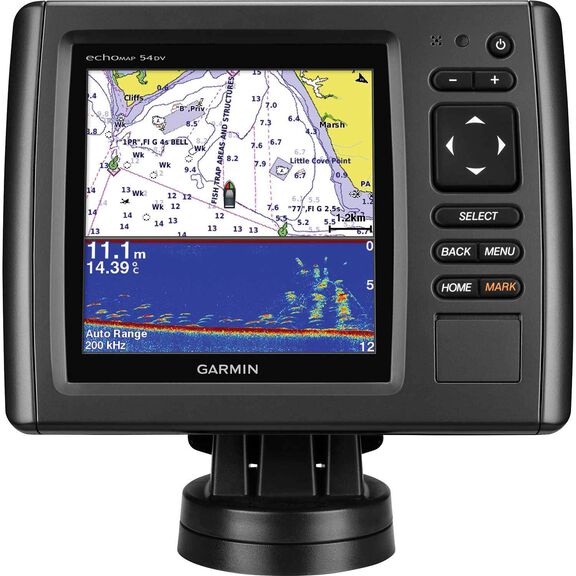

echoMAP™ 54dv Chartplotter/Sonar Combo with DownVü Scanning Sonar

The Garmin echoMAP™ series of chartplotter/sonar pushbutton combos have built-in Garmin HD-ID™ traditional sonar plus DownVü that provides the clearest scanning sonar images on the water. They have the most accurate GPS for its class, and are available preloaded with LakeVü HD or BlueChart^®: g2 cartography. You simply can’t buy a better chartplotter/sonar unit for the money.

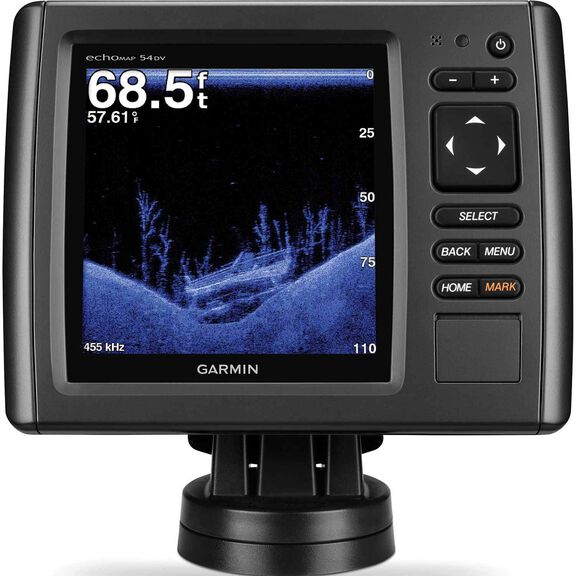

DownVü: scanning sonar is built into echoMAP™ dv combos. DownVü gives you the clearest, nearly photographic sonar view of what’s below your boat. It uses an all-in-one HD-ID™ and DownVü transducer allowing you to have both traditional and DownVü images on your screen.

Traditional Garmin HD-ID sonar and DownVü scanning sonar are combined into one transducer, the GT21-TM transducer (50/200kHz/DownVü, 4-pin) that’s included with this combo. Also provides HD-ID support for Minn Kota^®: and MotorGuide^®: trolling motors with integrated transducers.

• Display Type: Color TFT LCD
• Screen Size: 5": diagonal
• Screen Resolution: 480 x 480
• Receiver Type: 5Hz internal GPS/GLONASS
• Included Cartography: US Coastal BlueChart g2
• Optional Cartography: LakeVü: HD Ultra, BlueChart^®: g2, BlueChart g2 Vision Transmit Power: 500W (RMS)
• Transducer: Transom Mount
• Maximum Depth: 2,300' (saltwater), 1,100' (freshwater) @ 77kHz
• Frequency: Traditional 50/200kHz plus 455/800kHz DownVü
• NMEA Interface: NMEA 0183
• Dimensions: 5 7/8":W x 6 1/8":H x 2 3/8":D
• Waterproof Rating: IPX7
• Warranty: One year
