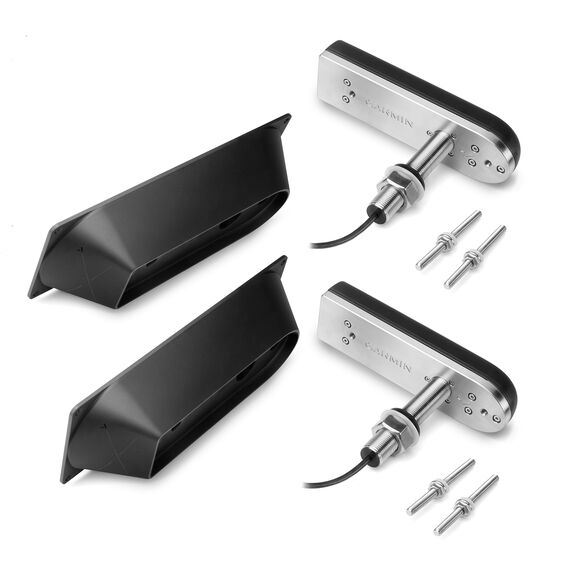

GARMIN GT51M-TH Stainless Steel Thru-Hull DownVü/SideVü CHIRP Transducer Pair

This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional CHIRP sonar and CHIRP DownVü/SideVü transducer is optimized for depth performance and rough conditions.

The CHIRP DownVü/ SideVü elements have a power rating of 500W per element (1,500W total) and operating frequencies of 260/455kHz. The traditional CHIRP sonar has a power rating of 600W and operating frequencies of mid-band CHIRP 80-160kHz. It includes a built-in fast-response temperature sensor.  For hull deadrises less than 5°. GT51M-TH includes 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings. Compatible with Garmin GPSMAP 7600xsv series and the GSD25.

• Frequency:  Traditional: CHIRP 80-160kHz; DownVü: CHIRP 245-275kHz and CHIRP 445-465kHz; SideVü: CHIRP 245-275 kHz and CHIRP 445-465 kHz
• Transmit Power: Traditional: 600W; DownVü: 500W; SideVü: 500W
• Max. Depth: Traditional: 1,800'; DownVü: 1,000'; SideVü: 750'
• Beamwidth: Traditional: 24°-13°; DownVü: 2.0° x 51°@260kHz, 1.4° x 29°@455kHz; SideVü: 2.0° x 51°@260kHz, 1.4° x 29° @455kHz
• Cable Length: 5 ft + 30 ft ext. with 12-pin connector
• Dimensions: Transducers: 9.0" x 2.5" x 1.6" (228 x 62 x 41 mm), Thru-hull Stem: 1.0" x 5.3" (24 x 135 mm), Thru-hull fairing blocks: 12.7" x 4.6" x 2.5" (323 x 116 x 64 mm)
