GMR xHD2 Open Array Radar
Model #
16223869
Mfg #
010-01333-03
$899.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Array and Pedestal sold separately.
Select a Product:

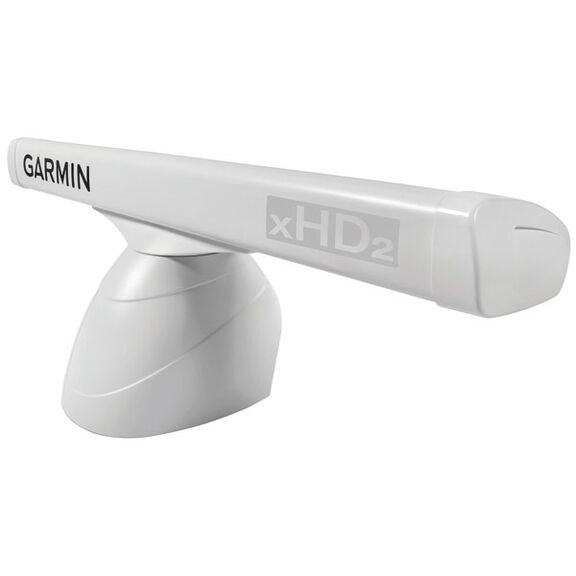

4' Array for xHD2 GMR™ 424, 624 or 1224
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
High-powered pulse radar that networks with your compatible Garmin display.
Garmin's high-definition open-array radars have improved sensitivity, consistent target positions, and the high reliability you demand. They paint a clear, concise image of the shoreline, other vessels, and impending weather on your compatible Garmin chartplotter. A dual-range radar antenna can provide both close- and long-range split-screen images. Easy to install and start using with no complex user settings. Available in 4kW, 6kW, 12kW, and 25kW in 4' or 6' open arrays. Array and Pedestal sold separately.
GMR xHD2 Radar Features:
- Bird Mode has the sensitivity to determine the targets of birds feeding in the distance
- Echo Trails leave a historical "trail" on the screen to help quickly and easily identify moving targets and collision threats
- Dual Range: A Single radar antenna is capable of providing split-screen images on your chartplotter for both close and long range
- Dual Radar Support provides redundancy and the ability for each display unit on the boat to select data from one of two different radar sources
- Dynamic Auto Gain automatically adjusts gain levels to optimum settings for harbors, near shore, and offshore in open waters
- Dynamic Sea Filter automatically adjusts gain to calm, medium, and rough sea conditions
- Radar Overlay overlays the radar image on the chartplotter's map page
- MARPA Target Tracking: Mini-automatic radar plotting aid (MARPA) tracks up to 10 selected targets, helping you keep track of other vessels and avoid collisions (Requires Heading Sensor, Model 11068798, sold separately)
GMR xHD2 Radar Specs:
- Rotation Speed: 24 and 48rpm
- Minimum Range: 20 meters
- Voltage: 10-32V DC
- Waterproof Rating: IPX6
- Warranty: Two years
Compatible Displays and Features They Support
| Compatible GPSMAP Display Model | 7x1 | 8x0, 10x0 | 4000/5000 | 6000/7000 | 7400/7600 | 8000/8500 |
|---|---|---|---|---|---|---|
| Radar Overlay | • | • | • | • | • | • |
| Dual Range | • | • | • | • | ||
| MARPA | • | • | • | • | ||
| True Color | • | • | • | • | • | |
| Auto Bird Gain | • | • | • | • | ||
| Echo Trails | • | • | • | • | ||
| Pulse Expansion | • | • | ||||
| Dual Radar Support | • | • | ||||
| Programmable antenna parking | • | • |
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Type
Radars
Beam
1.8 Degrees H
Dimensions
52 1/4" Width x 5" Height x 6 3/4" Depth
Maximum Range
72 Nautical Miles
Rotation
24/48 RPM (Dual Rotation)
Transmit Power
6 Kilowatts
Type
Radars
Voltage
10 to 32 Volts DC
Warranty
Two Years
Waterproof
Waterproof
Weight
12.2 Pounds
