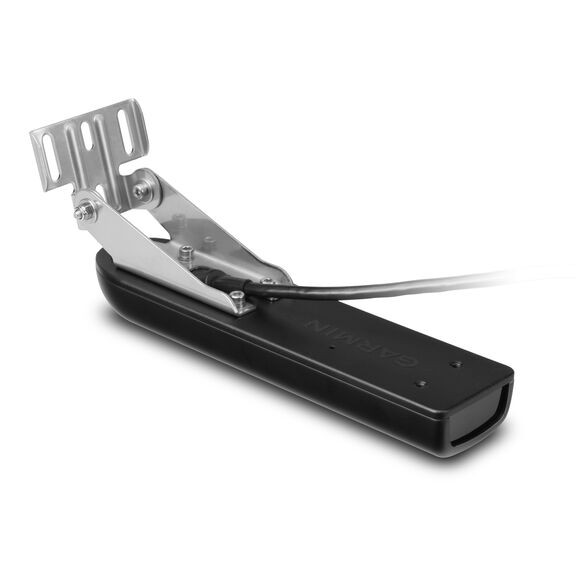

GT40-TM Transom Mount DownVü / SideVü Transducer
Model #
16223729
Mfg #
010-12220-00
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
GT40-TM Transom Mount DownVü / SideVü Transducer
Model #
16223729
Mfg #
010-12220-00
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
All-in-one Traditional/SideVü/DownVü transducer is optimized for clearer image at shallow depths. Provides picture-like images of what is below your boat. Contains fast response water temperature sensor. Compatible with GPSMAP® 7600 and 7400, GSD 25.
- Frequency Range: Trad. 77/200kHz, Down/Side/CHIRP 425-485kHz, 790-850kHz
- Beamwidth: Trad. 45°/15°; Down/Side 1.1° x 53° @ 455kHz; 0.7° x 30° @ 800kHz
- Transmit Power: 500W (RMS)
- Maximum Depth: Trad. 1,900' fresh, 900' salt, Down 750', Side 500'
- Transom Angle: 0-70° transom
- Connector: 12-pin
- Cable Length: 30'
Type
Transom Mounts
Beam
15x45 Degrees Low-Frequency
Deadrise Angle
0 to 20 Degree
Frequency
77/200+ 425/485+790/850kHz
Material
Plastic
Maximum Depth
1900 Feet
Sonar
CHIRP Sonar
,
Depth
,
Temperature
Transmit Power
500 Watts
Type
Transom Mounts
