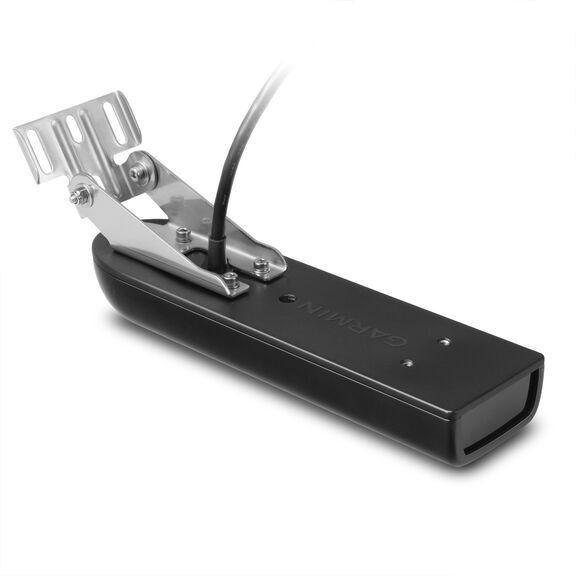

GT41-TM Plastic Transom Mount DownVü/SideVü CHIRP Transducer
Model #
16223737
Mfg #
010-12221-00
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Get 5X West Advantage Points on all purchases for a limited time! Not a rewards member? JOIN NOW
GT41-TM Plastic Transom Mount DownVü/SideVü CHIRP Transducer
Model #
16223737
Mfg #
010-12221-00
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
This transom mount 12-pin transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional and CHIRP DownVü/SideVü transducer is optimized for depth performance and rough conditions.
The CHIRP DownVü/SideVü elements have a power rating of 500W per element (1,500W total) and operating frequencies of 260/455kHz. The traditional sonar has a power rating of 600W and operating frequencies of 50/200kHz. It also includes a built-in fast response temperature sensor. Compatible with GPSMAP® 7600 and 7400, GSD 25.
- Frequency Range: Traditional 50/200kHz, Down/CHIRP 245-275kHz, 445-465kHz
- Beamwidth: Traditional 40°/10°; Down/Side 2.0° x 51° @ 260kHz; 1.4° x 29° @ 455kHz
- Transmit Power: Trad. 600W, Down 500W
- Maximum Depth: Trad. 1,500', Down 1,000', Side 750'
- Transom Angle: 0-70° transom
- Connector: 12-pin
- Cable Length: 30'
