GT50M-THP Stainless Steel Thru-Hull Pair Transducers
Model #
16223786
Mfg #
010-12222-11
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
GT50M-THP Stainless Steel Thru-Hull Pair Transducers
Model #
16223786
Mfg #
010-12222-11
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
This thru-hull transducer pair provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. These traditional CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for clearer images at shallower depths.
The CHIRP DownVü/ SideVü elements have a power rating of 500W per element (1,500W total) and operating frequencies of 455/800kHz. The traditional CHIRP sonar has a power rating of 300W and operating frequencies of mid-band CHIRP 80-160kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 25 degrees.

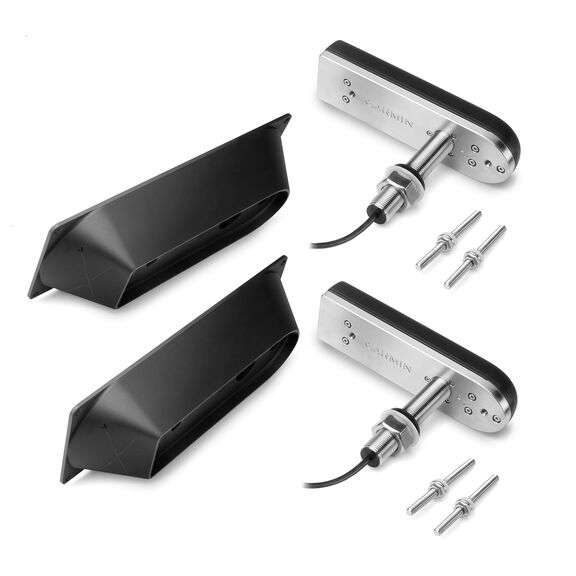

GT50M-THP includes a 12-pin port/starboard transducers with stainless steel stems, fairing blocks, Y-cable, bushings. Compatible with Garmin GPSMAP 7600xsv series and the GSD25.
Specifications:
- Dimensions: Transducer: 9.0 x 2.5 x 1.6 in (228 x 62 x 41 mm), Thru-hull Stem: Ø1.0 x 5.3 in (24 x 135 mm), Thru-hull fairing block: 12.7 x 4.6 x 2.5 in (323 x 116 x 64 mm)
- Frequency: Traditional: CHIRP 85-165kHz; DownVü: CHIRP 425-485 kHz and CHIRP 790-850 kHz; SideVü: CHIRP 425-485 kHz and CHIRP 790-850 kHz
- Transmit power: Traditional: 300W; DownVü: 500W; SideVü: 500W
- Max Depth: Traditional: 1,500'; DownVü: 750'; SideVü: 500'
- Beamwidth: Traditional: 26°-15°; DownVü: 1.1° x 53°@455kHz, 0.7° x 30°@800kHz; SideVü: 1.1° x 53°@455kHz, 0.7° x 30° @800kHz
- Cable Length: 5 ft + 30 ft ext. with 12-pin connector
