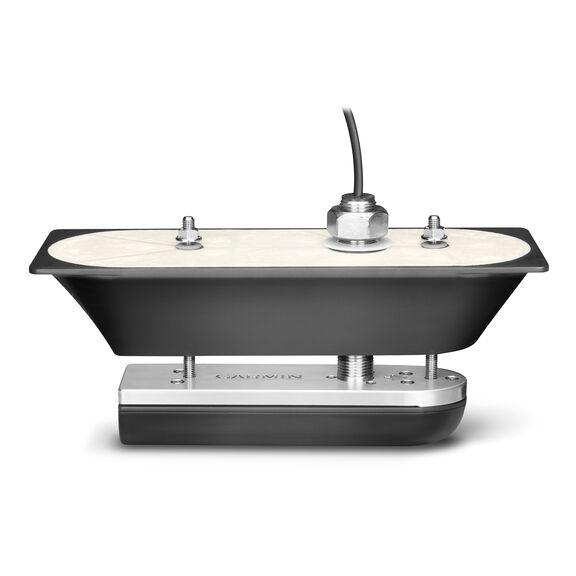

GT51M-TH Stainless Steel Thru-Hull DownVü/SideVü CHIRP Transducer
Model #
16223802
Mfg #
010-12223-10
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
GT51M-TH Stainless Steel Thru-Hull DownVü/SideVü CHIRP Transducer
Model #
16223802
Mfg #
010-12223-10
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
This thru-hull transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional CHIRP sonar and CHIRP DownVü/SideVü transducer is optimized for depth performance and rough conditions.
The CHIRP DownVü/ SideVü elements have a power rating of 500W per element (1,500W total) and operating frequencies of 260/455kHz. The traditional CHIRP sonar has a power rating of 600W and operating frequencies of mid-band CHIRP 80-160kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 5°. GT51M-TH includes a 12-pin transducer with stainless steel stem, fairing block, isolation plate and bushings. Compatible with Garmin GPSMAP 7600xsv series and the GSD25.
Specifications:
- Frequency: Traditional: CHIRP 80-160kHz; DownVü: CHIRP 245-275kHz and CHIRP 445-465kHz; SideVü: CHIRP 245-275 kHz and CHIRP 445-465 kHz
- Transmit Power: Traditional: 600W; DownVü: 500W; SideVü: 500W
- Max. Depth: Traditional: 1,800'; DownVü: 1,000'; SideVü: 750'
- Beamwidth: Traditional: 24°-13°; DownVü: 2.0° x 51°@260kHz, 1.4° x 29°@455kHz; SideVü: 2.0° x 51°@260kHz, 1.4° x 29° @455kHz
- Cable Length: 5 ft + 30 ft ext. with 12-pin connector
- Dimensions: Transducer: 9.0 x 2.5 x 1.6 in (228 x 62 x 41 mm), Thru-hull Stem: Ø1.0 x 5.3 in (Ø24 x 135 mm), Thru-hull fairing block: 12.7 x 4.6 x 2.5 in (323 x 116 x 64 mm)
