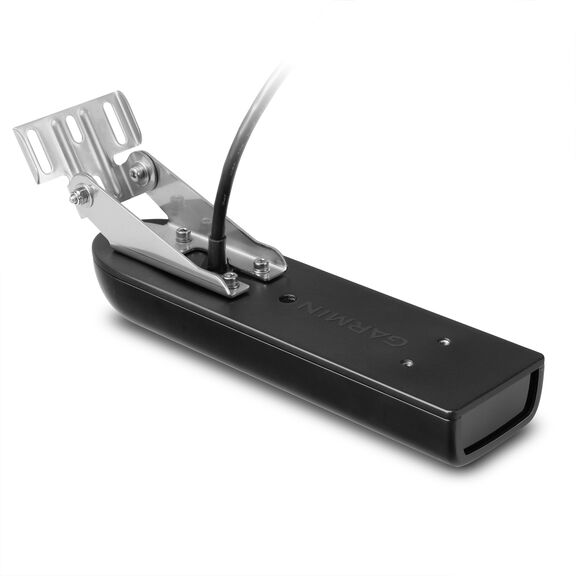

GT51M-TM – Transom Mount DownVü/SideVü Transducer with Temp
Model #
16223794
Mfg #
010-12223-00
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
GT51M-TM – Transom Mount DownVü/SideVü Transducer with Temp
Model #
16223794
Mfg #
010-12223-00
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
This transom mount 12-pin transducer provides ultra-clear sonar pictures of objects, structure and fish that pass below your boat. This traditional CHIRP and CHIRP DownVü / SideVü transducer is optimized for depth performance and rough conditions.
The CHIRP DownVü / SideVü elements have a power rating of 500W per element (1,500W total) and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600W and operating frequencies of mid-band CHIRP 80-160kHz. It also includes a built-in fast response temperature sensor. Compatible with Garmin GPSMAP 7600xsv series and the GSD25.
- Cable length: 30’
- Number of pins on connector: 12
- Frequency: Trad./CHIRP 80-160kHz, Down/Side/CHIRP 245-275kHz, 445-465kHz
- Transmit power: Traditional: 600W, DownVü: 500W, SideVü: 500 W
- Max Depth: Traditional: 1,800', DownVü: 1,000', SideVü: 750'
- Beamwidth: Trad./CHIRP 24°-13°, 2.0° x 51° @260kHz, 1.4° x 29° @455kHz
