This product is not longer available, we recommend a similar product instead:
Clearance
P32 Transom Mount Dual Frequency Transducer
Model #
14390744
Mfg #
010-10106-20
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.

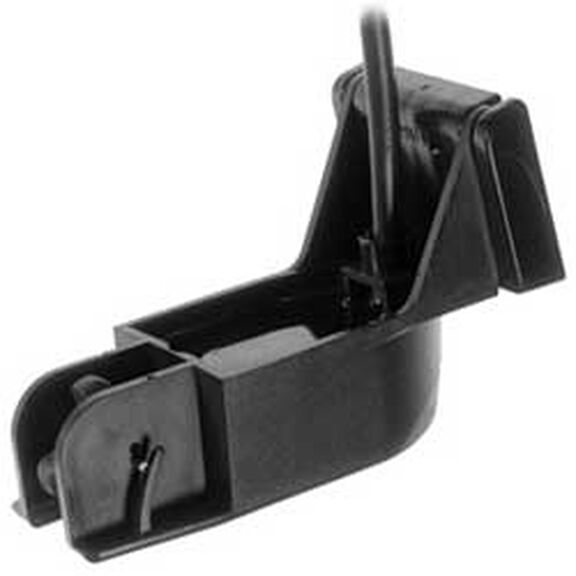

P32 Transom Mount Dual Frequency Transducer
Model #
14390744
Mfg #
010-10106-20
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
Plastic transom mount provides depth, speed and temperature in one package.
Garmin's 8-pin 500W transducer has a maximum working depth of 900' a beamwidth of 45°/15°. Applications include outdrives and outboard boats, jet boats or small, general-purpose vessels. Requires transducer adapter cable, 010-11947-00 with echo™ series fishfinders.
Key Features
- Square blade paddlewheel improves linearity and is more accurate throughout the speed range
- Release bracket kicks up to prevent impact damage to transducer
- Paddlewheel is easily removed for service
- Impressive noise shielding in a compact, economical transducer
- Bracket vertical adjustment: 19mm (3/4")
- Chemical and impact resistant plastic housing
Specifications
- Style: Transom mount
- Cable Length: 30'
- Number of Pins: 8-pin
- Supported Transom Angle: 3°-20° degree transom
- Monitors: Depth, Speed and Temperature
- Material: Nylon
- Transmit Power: 500W (RMS)
- Frequency: 77/200kHz
- Max. Depth: 900'
- Beamwidths: 45°/15°
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Type
Transom Mount
Beam
15x45 Degrees
Deadrise Angle
3 to 21 Degree
Frequency
77/200kHz
Material
Plastic
Maximum Depth
900 Feet
Sonar
Depth
,
Speed
,
Temperature
Transmit Power
500 Watts
Type
Transom Mount
