Panoptix™ PS60 Thru-Hull Down Transducer

Panoptix™ PS60 Thru-Hull Down Transducer image number null
Panoptix™ PS60 Thru-Hull Down Transducer image number null

Panoptix™ PS60 Thru-Hull Down Transducer

5 out of 5 Customer Rating
-
+
Availability
  • Unavailable Online
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

$3,999.99
This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 16223687 Mfg # 010-01406-00
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

See fish and bait swimming around under your boat, in real time, even while stationary.

With the Panoptix thru-hull down transducer, you can actually see fish and bait swimming around under your boat — in real time; even while stationary. You get three remarkable views: LiveVü Down, RealVü 3-D Down and RealVü 3-D Historical.

Panoptix all-seeing sonar is unlike anything you’ve ever seen on the water. It gives you the ability to see all around your boat in real-time. You can see fish in the water column in 3-D. You also can see your bait cast into the water and watch it as you reel it in. You can see fish swimming in front of or below your boat. You can even see them chase your lure. But to truly appreciate Panoptix, you have to see it. Comes with Panoptix thru-hull mount transducer, thru-hull mounting hardware and fairing block.

LiveVü Down: Provides real-time moving sonar images. You can see fish swimming toward or away from the boat. You can see small baitfish and large target fish swimming around, even your lure.

RealVü 3-D Down: Allows your boat to be stationary and still see things in 3-D around your boat. It shows history of only one sweep.

RealVü 3-D Historical: Used for finding fish while your boat is moving. This shows the entire water column you have passed over in 3-D, from the bottom of the surface and all of the fish in between.

Compatible Displays: Easy to use with compatible Garmin echoMAP™ CHIRP 7" and 9" models, GPSMAP® 7400/7600 series, GPSMAP 8000/8500/8400/8600 Glass Helm series and GPSMAP 721/741/820/840/1020/1040 series chartplotters. Includes transducer transom mounting kit.

Specifications

  • Frequency: 417 kHz
  • Transmit Power: 144 W
  • Beamwidth: RealVü 3D: 90°x 120°; LiveVü: Adjustable 10°-40°x 90°
  • Maximum Depth: 300'
  • Depth/Speed/Temperature: Depth and Temperature
  • Networking: Ethernet
  • Dimensions: 1 5/16"W x 4 5/8"H x 3 5/16"D
  • Weight: .87lb.
  • Cable Length: Power Cable 15'; Ethernet Cable 30'
  • Supported Deadrise Angles: Up to 25° deadrise

What's in the Box

  • PS60 thru-hull down transducer (integrated 30 foot network cable, 15 foot power cable)

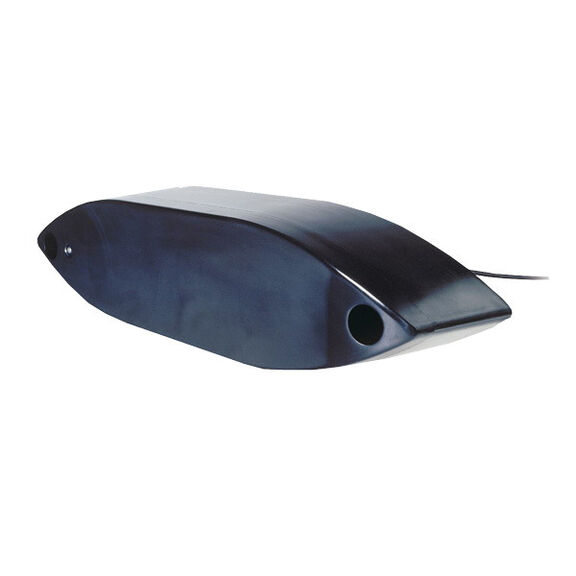

  • Fairing block
  • Stainless steel thru-hull mounting hardware
  • Split ring RJ45 connector
  • Documentation

Installation Manual

Beam 120/10 Degree (LiveVu Down)
Deadrise Angle 0 to 25 Degree
Frequency 417kHz
Maximum Depth 300 Feet
Transmit Power 144 Watts
Type Thru-Hull
