35 Electric Self-Tailing Radial Chrome Winch — 2 Speed, 12V, Horizontal
Complete Your Purchase

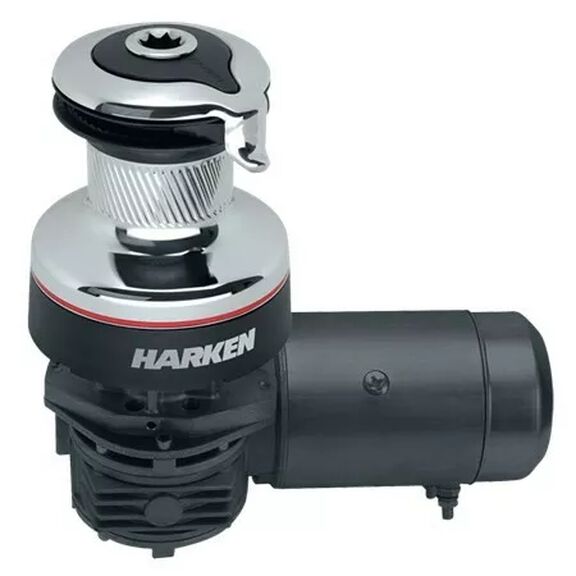

HARKEN 35 Electric Self-Tailing Radial Chrome Winch — 2 Speed, 12V, Horizontal
Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs (rather than textured abrasive materials) to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength and corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear provides fast trimming; higher-power second gear delivers fine-tuning of loaded sheets. The efficient design allows for smaller motor size.
Key Features
- Two-speed electric operation (12V, horizontal mount)
- Self-tailing drum with diagonal rib gripping surface
- Chrome construction for durability and corrosion resistance
- Composite roller bearings reduce friction under load
- 17-4 PH stainless steel gears and pins
- Power ratios: 13.50 (first gear), 35.90 (second gear)
- 80 mm (3 1/8 in) drum diameter
- Five fastener mounting system
Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.
