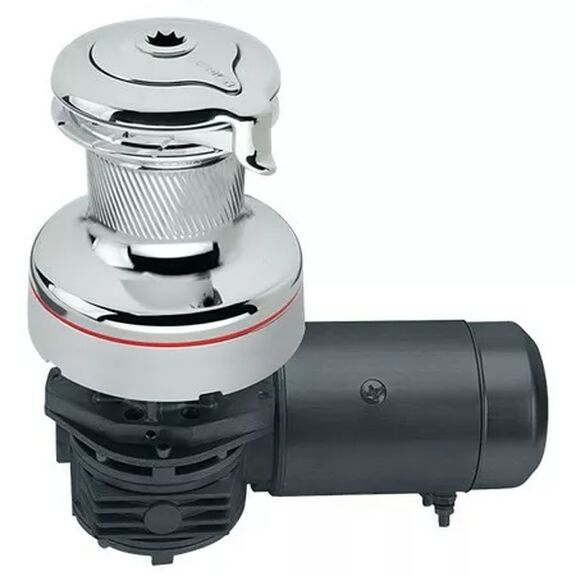

HARKEN YACHT FITTINGS 46 Electric Self-Tailing Radial All-Chrome Winch — 2 Speed
Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The Radial winch drum's gripping surface is shaped for each winch size and drum material and features diagonal ribs rather than textured abrasive materials to maximize gripping power and greatly reduce line wear. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.
High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength and corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear provides fast trimming, while higher-power second gear enables fine-tuning of loaded sheets. The efficient design allows for smaller motor size.
Each electric winch requires one control box, one circuit breaker, and two analog switches or one Digital System Switch. All new electric Radial and Performa electric winches are supplied with the appropriate dual-function control box. For replacement or retrofit control boxes, contact Harken.
Key Features
- Self-tailing configuration for single-crew operation
- Two-speed mechanical advantage (Gear ratio 1: 2.30, Gear ratio 2: 9.17; Power ratio 1: 11.70, Power ratio 2: 46.50)
- Diagonal-rib drum design for superior grip and reduced line wear
- High-strength composite roller bearings and bushings
- 17-4 PH stainless steel gears and pins for corrosion resistance
- All-Chrome material construction
- Accepts line diameter 8–14 mm (5/16–9/16 in)
- Compact Radial design with 100 mm drum diameter
