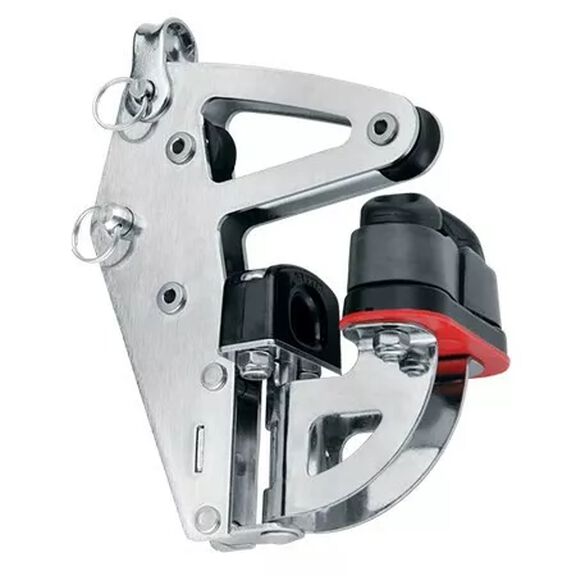

HARKEN YACHT FITTINGS Dinghy Vang Lower Unit
The Dinghy Vang Lower Unit is a specialized component designed for small boat and dinghy vang systems. This assembly features 16 mm sheaves with stainless steel ball bearings engineered to handle high loads reliably. The integrated 468 Micro Cam-Matic® cleat enables precise sail trimming with smooth operation, and its pivoting design ensures fair lead for easy cleating under load.
The unit connects securely to a mast bracket using a 1/4" pin and is available as a standalone component or as part of complete vang kits. When cascaded with 4:1 blocks, the system provides a 12:1 mechanical advantage, delivering powerful control for competitive sailing and demanding conditions. This lower unit is compatible with ILCA and other single-design dinghy classes.
Key Features
- 16 mm sheaves with stainless ball bearings for durability and high load capacity
- 468 Micro Cam-Matic® cleat for precise, easy trimming
- Pivoting cleat design ensures fair lead
- Connects via 1/4" pin to mast bracket
- 12:1 purchase ratio when cascaded with 4:1 blocks
- Lightweight at 229 g (8.1 oz)
- Maximum working load: 181 kg (400 lb)
- Breaking load: 454 kg (1000 lb)
- Maximum sail area: 11.6 m² (125 ft²)
