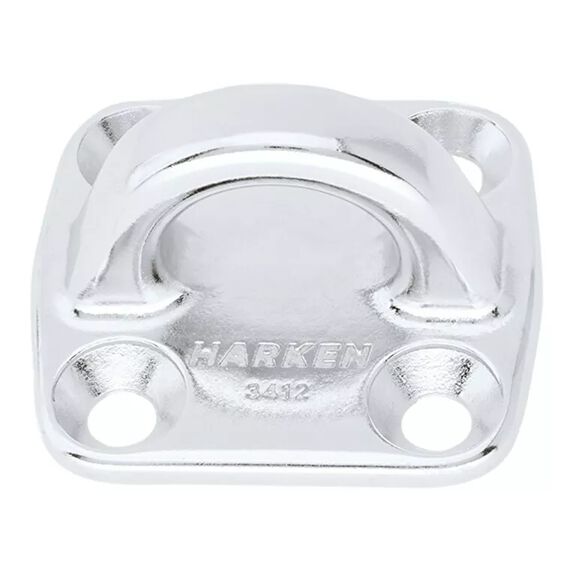

HARKEN YACHT FITTINGS Medium HL Square Duplex Padeye
The Medium HL Square Duplex Padeye represents an advancement in marine hardware engineering, utilizing duplex stainless steel—a class of material new to Harken's padeye lineup. Duplex stainless steel contains increased amounts of chromium in its alloy composition, delivering enhanced corrosion resistance at very high relative structural strengths compared to conventional stainless grades.
Key Features
- Duplex A890 5A stainless steel construction with electropolished finish (ASTM B912-02)
- Maximum working load: 4763 kg (10,500 lb)
- Breaking load: 9525 kg (21,000 lb)
- Weight: 420 g (14.8 oz)
- Square, Size C form factor designed for medium-duty applications
- Fastener compatibility: M10 or 3/8" bolt

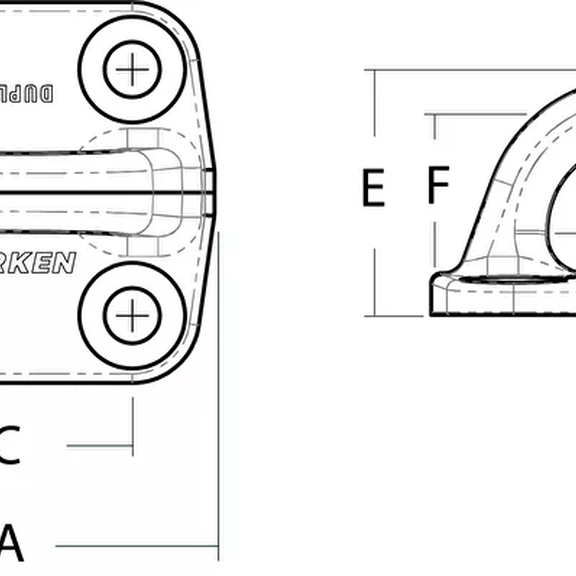

- Overall dimensions: 80 mm width × 48 mm height
- Eye diameter: 74.282 mm vertical × 46.231 mm horizontal
While stainless steel offers superior corrosion resistance, it is not maintenance-free. Sailors should inspect structural stainless deck hardware regularly and clean and restore the finish as needed to maintain optimal performance and appearance in challenging marine environments.
Breaking Strength
9525 kg
Fastener Type
Bolt
Height
48 mm
Material
Duplex Stainless Steel
Safe Working Load
4763 kg
Weight
420 g
Width
80 mm
