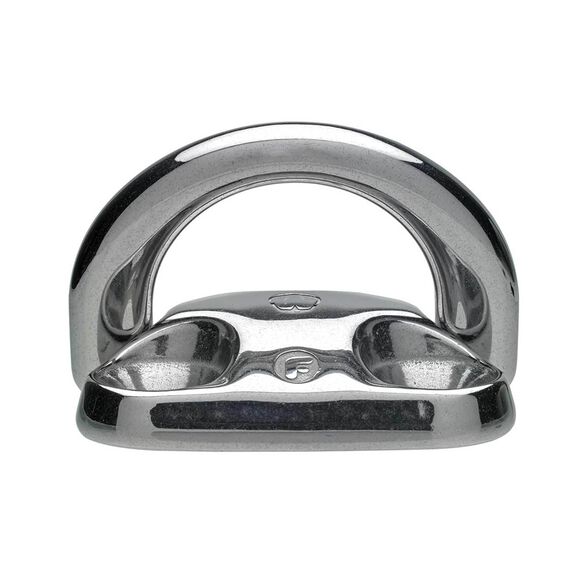

Beautiful, elegant yet super-strong, you can depend on Wichard's Folding Padeyes.
Add secure attachment points to your deck without compromising on style or safety. Wichard Folding Padeyes combine elegant design with serious strength, crafted from Grade 316L and HR 17.4PH stainless steel through a full drop forging process. This construction delivers outstanding working and breaking loads at any angle, giving you dependable performance for sheets, blocks, and rigging connections. The folding design lets you lay padeyes flat when not in use, reducing trip hazards and potential injuries on deck. Included silicone spacers eliminate noise and vibrations, keeping your boat quiet underway. Modern aesthetics complement today's boat designs beautifully.
Key Features:
- Fully drop forged from Grade 316L and HR 17.4PH stainless steel
- Outstanding working and breaking loads regardless of load angle
- Folding design minimizes injury risk when not in use
- Silicone spacers are included to eliminate noise and vibrations
- Modern, optimized aesthetics suit contemporary boat styling
Folding Padeye Dimensions and Load Chart
| Small Folding Padeye | Medium Folding Padeye | Large Folding Padeye | |
|---|---|---|---|
| Width of Base A | 1 49/64" (45mm) | 2 1/4" (57mm) | 2 61/64" (75mm) |
| Hole Center, Side B | 1 1/16" (27mm) | 1 3/8" (35mm) | 1 49/64" (45mm) |
| Opening Height C | 19/32" (15mm) | 45/64" (18mm) | 63/64" (25mm) |
| Overall Width of Ring D | 1 47/64" (44mm) | 2 21/64" (59mm) | 3 5/32" (80mm) |
| Length E | 1 39/64" (41mm) | 2 1/64" (51mm) | 2 43/64" (68mm) |
| Hole Center, Front/Back F | 1 1/8" (27mm) | 1 3/8" (35mm) | 1 49/64" (45mm) |
| Fastener Hole Diameter Ød | 1/4" (6mm) | 5/16" (8mm) | 25/64" (10mm) |
| Ring Diameter ØD | 1/4" (6mm) | 5/16" (8mm) | 25/64" (10mm) |
| Weight | 0,123 Lb. (78g) | 0,364 Lb. (165g) | 0,783 Lb. (355g) |
| Working load | 3170 Lb. (1140kg) | 5290 Lb. (2400kg) | 9000 Lb. (4080kg) |
| Breaking load | 6610 Lb. (3000kg) | 11000 Lb. (5000kg) | 19840 Lb. (9000kg) |
