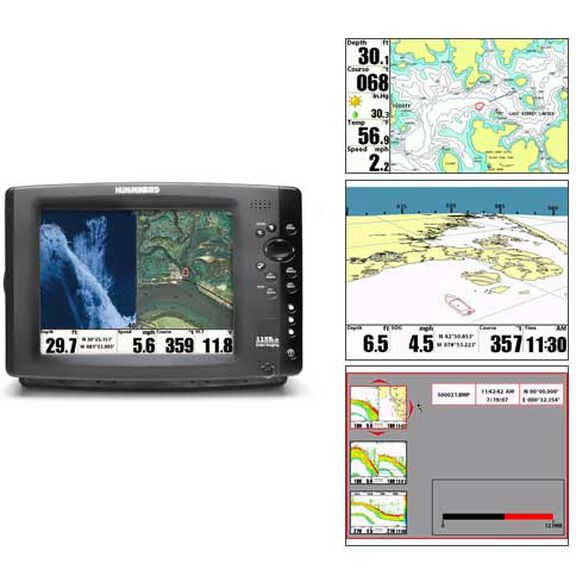

1158c DI Fishfinder with External GPS Combo

Maximize your angling experience with the Humminbird 1158c DI Combo fishfinder system.

Humminbird’s NEW 1158c DI gives you incredibly detailed views of the bottom and structure below your boat on a huge 10.4” LED backlight color display with pristine, 600V x 800H LCD pixel clarity. Down Imaging® and DualBeam PLUS™ sonar with up to 4000 Watts PTP power output, GPS Chartplotting with built-in ContourXD maps, and advanced Fishing System capabilities. Includes unit cover and in-dash mounting kit.

Display
10.4" diagonal
600V x 800H
4:3 Color TFT

Cartography
Navionics Compatible
LakeMaster® Compatible

Memory
Waypoints: 3,000
Routes: 50
Tracks: 50 w/20,000 points each

Sonar
Down Imaging® w/ DualBeam PLUS™
w/SwitchFire™
200 kHz / 25° @ -10db
455 kHz / 16° @ -10db
455 kHz / 75° @ -10db
800 kHz / 45° @ -10db
Depth: 250ft (DI)/600 ft.

Power Output
500 Watts* (RMS)
4000 Watts* (Peak-to-Peak)

GPS Features
Precision GPS
Trackplotting
Chartplotting
GPS Speed
Humminbird ContourXD®

System Newtork
Ethernet Networking (optional)
Cannon® Cannonlink(optional)
WeatherSense® (optional)
InterLink (optional)

Warranty
One Year


Advanced Sonar Features

• Switchfire Sonar
• Screen Snap Shot to Memory Card
• Sonar Recording
• Split Screen Zoom
• Split Screen Bottom Lock
• Wide Narrow Cone Split Screen
• Instant Image Update
• Freeze Frame with the ability to Mark Structure on Sonar
• Selective Fish ID+
• Real Time Sonar RTS Window
• Sonar Echo Enhancement
• TrueArch Technology

User-Friendly Technology

• 3D Chart View
• Large Digits View
• Custom View Selections
• Custom Digital Readout Selection
• Selectable Display Colors
• Selectable Background Colors
• View Preset Keys
• Temperature Graph
• Temperature Alarm
• Triplog
• X-Press™ Menu System


Specifications

• Display Size: 10.4" diagonal
• Display Pixel Matrix: 600V x 800H
• Display Type: 4:3 Color TFT
• Display Colors/Grayscale: 65,000 Colors
• Down Imaging®
  Sonar Coverage
  455 kHz / 75° @ -10db
  800 kHz / 45° @ -10db
• Dual Beam PLUS™
  Sonar Coverage
  200 kHz / 25° @ -10db
  455 kHz / 16° @ -10db
• Target Separation: 2.5 inches
• Power Output (RMS): 500 Watts (RMS)
• Power Output (Peak to Peak): 4000 Watts (Peak-to-Peak)
• Temperature: Included
• Speed: GPS Speed Included
• Backlight: Yes
• Waterproof: Yes
• Mount: In-dash
• Unit Size: 13.1" W x 9 .3" H x 2.9" D
• Mount: Gimbal
• Unit Size: 13.1" W x 8.8" H x 2.9" D
• Transducer - Standard: XNT-9-DI-T
• Transducer Mounting: Inside Hull or Transom
• Power Input: 10-20 VDC
• Power Draw: Lights off: 1.4 Amps
