This product is not longer available, we recommend a similar product instead:
Clearance
596c HD Fishfinder (Sonar Only)
Model #
12012423
Mfg #
407910-1
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+

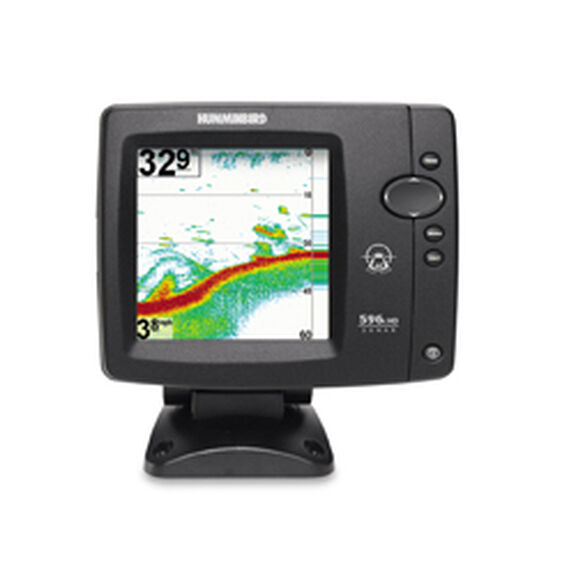

596c HD - Sonar Only
New for 2011!
The 596c HD features an industry best, brilliant, color 640V x 640H 5" display. Dual Beam PLUS Sonar with 4000 Watts PtP power output, and a Tilt & Swivel Quick Disconnect Mounting System. The new design also allows drop-in replacement capability for competitive in-dash models. Maximize your angling experience with the Humminbird 596c HD fishfinder.
Display
- 5" diagonal
- 640V x 640H
Sonar
- Dual Beam PLUS
- 200 kHz / 20° @ -10db
- 83 kHz / 60° @ -10db
Power Output
- 500 Watts (RMS)
- 4000 Watts (Peak-to-Peak)
Warranty
- One Year
Advanced Sonar Features
- Real Time Sonar RTS Window
- Selective Fish ID
- Sonar Echo Enhancement
- Split Screen Zoom
User-Friendly Technology
- Custom Digital Readout Selection
- Large Digits View
- Quick Disconnect Mounting System
- Selectable Background Color
- Triplog-optional
- X Press Menu System
|
Display Size:
|
5" diagonal | |
|---|---|---|
|
Display Pixel Matrix:
|
640V x 640H | |
|
Display Type:
|
256 Color TFT | |
|
Display Colors/Grayscale:
|
256 Colors | |
|
Dual Beam
|
||
|
Sonar Coverage
|
200 kHz / 20° @ -10db 83 kHz / 60° @ -10db |
|
|
Target Separation:
|
2.5 inches | |
|
Power Output (RMS):
|
500 Watts (RMS) | |
|
Power Output (Peak to Peak):
|
4000 Watts (Peak-to-Peak) | |
|
Temperature:
|
Included | |
|
Speed:
|
Included | |
|
Backlight:
|
Yes | |
|
Waterproof:
|
Yes | |
|
Mount:
|
Quick Disconnect | |
|
Unit Size:
|
6.9" W x 7.5" H x 4.5" D | |
|
Mount:
|
Optional In-dash | |
|
Unit Size:
|
6.9" W x 5.4" H x 1.25" D | |
|
Transducer - Standard:
|
XNT-9-20-T | |
|
Transducer Mounting:
|
Transom | |
|
Power Input:
|
10-20 VDC | |
|
Current Draw:
|
615 mA | |
Type
Fishfinder
Diagonal Screen Size
5 Inches
Dimensions
7" Width x 7 1/2" Height x 4 1/2" Depth (Gimbal Mount)
,
7" Width x 5 3/8" Height x 1 1/4" Depth (In-Dash Mount)
Display Color
Color
Display Shape
Square
Display Type
Color 256 TFT
Frequency
83/200 kHz
Maximum Depth
1000 Feet
Mount Type
Tilt
,
In Dash
Resolution
640 x 640
Sonar
DualBeam Plus
Specific Transducer
XNT-9-20-T In-Hull or Transom-Mount
,
Dual-beam PLUS sonar
Transmit Power
500 Watts (RMS)
Type
Fishfinder
Warranty
One Year
