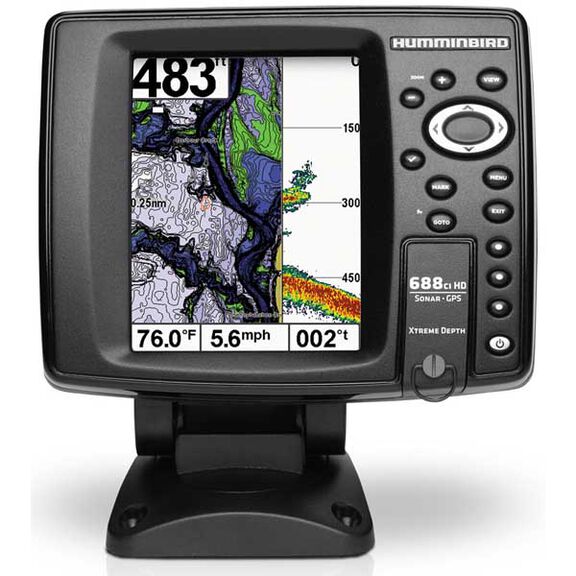

688ci HD XD Fishfinder / Chartplotter
Model #
15131204
Mfg #
409450-1
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
Internal GPS Combo - Xtreme Depth
The 688ci HD XD Combo features a High Definition 480H x 640V 5", 256 color display with backlight, DualBeam PLUS sonar with 8000 Watts PTP power output and 3000 ft depth capability alongwith GPS Chartplotting. In addition, it includes a card slot for maps and saving waypoints, as well as three programmable preset buttons to save your favorite views. Maximize your angling experience with the Humminbird 688ci HD XD Combo fishfinder GPS system.
Features:
Advanced Sonar Features
- Xtreme Depth Sonar
- Switchfire Sonar
- Screen Snap Shot to Memory Card
- Sonar Recording
- Split Screen Zoom
- Split Screen Bottom Lock
- Wide Narrow Cone Split Screen
- Instant Image Update
- Freeze Frame with the ability to Mark Structure on Sonar
- Selective Fish ID+
- Real Time Sonar RTS Window
- Sonar Echo Enhancement
- TrueArch Technology
User-Friendly Technology
- 3D Chart View
- Large Digits View
- Custom View Selections
- Custom Digital Readout Selection
- Selectable Display Colors
- Selectable Background Colors
- View Preset Keys
- Temperature Alarm
- Triplog
- X-Press Menu System
Specifications:
Display
- 5.0" diagonal
- 640V x 480H
- 256 Color TFT
Memory
- Waypoints: 2,500
- Routes: 45
- Tracks: 50 w/ 20,000 points each
Sonar
- Xtreme Depth™ DualBeam PLUS
- 200 kHz / 20° @ -10db
- 83 kHz / 60° @ -10db
- 50 kHz / 74° @ -10db
- Depth: 3000 ft.
Power Output
- 1000 Watts (RMS)
- 8000 Watts (Peak-to-Peak)
GPS Features
- Internal Precision GPS
- Trackplotting
- Chartplotting
- GPS Speed
- Humminbird Unimap
Warranty: One Year
