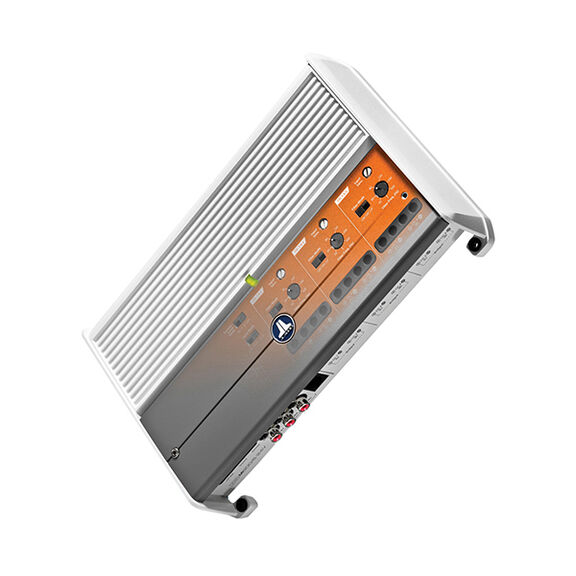

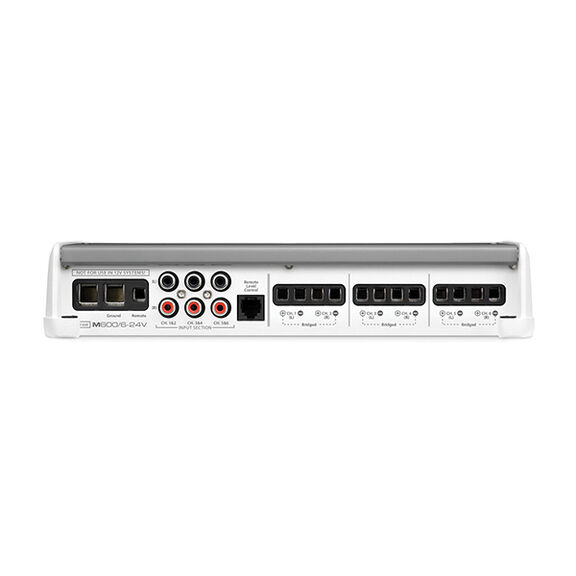

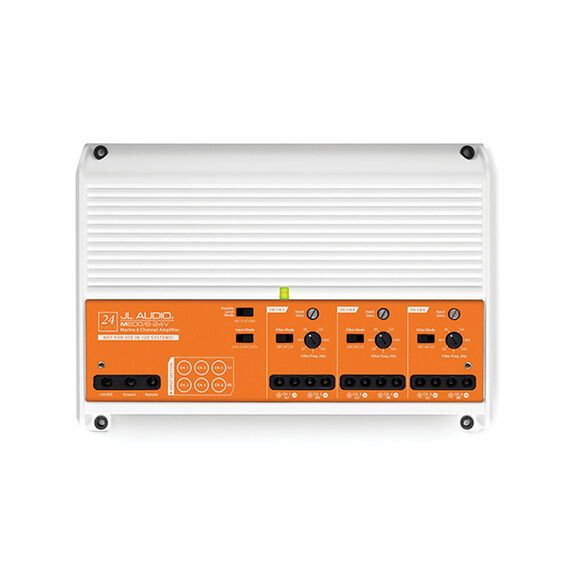

M600/6-24V Class D Full-Range Marine Amplifier

This incredibly flexible amplifier packs a serious full-range punch and delivers a staggering 100 Watts to each of its six channels into 2 Ohm. The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency. With the M600/6-24V, you have lots of great options. Use it as a six-channel satellite amplifier with 75 Watt x 4 at 4 Ohm or bridge four of its channels to create a staggered power four-channel amplifier with 200 Watt x 2 at 4 Ohm to one pair of satellites and 75 Watt x 2 at 4 Ohm to a secondary pair of satellites. You can also drive two subwoofers with 200 Watt each, plus a pair of satellites with 75 Watt x 2. The M600/6-24V includes a 12dB/octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50 to 500Hz. With the addition of an HD-RLC remote level control, you have the ability to control the level of two, four or all six of the amplifier's channel levels from a remote location. This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment. This amplifier is designed for operation in vessels with 24 Volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 Volts may result in damage to the product and will void the warranty.

• This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment
• This amplifier is designed for operation in vessels with 24 Volt, negative-ground electrical systems
• Frequency response: 12Hz to 22kHz (+0, -1dB)
• S/N ratio, referred to highest rated power: >104dB below rated power (A-weighted, 20Hz to 20kHz noise bandwidth)
• Input voltage range at RCA inputs is 100mV to 4VRMS
• Minimum copper power/ground wire gauge of 4 AWG
• Fuse rating of 30 Amps (AFS, AGU or MaxiFuse™)
