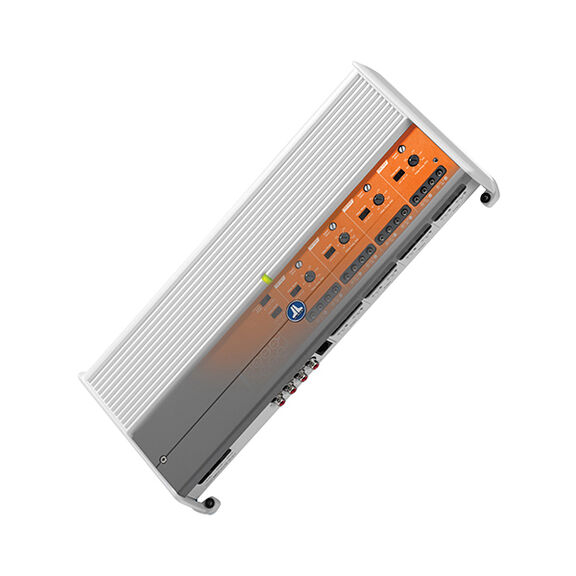

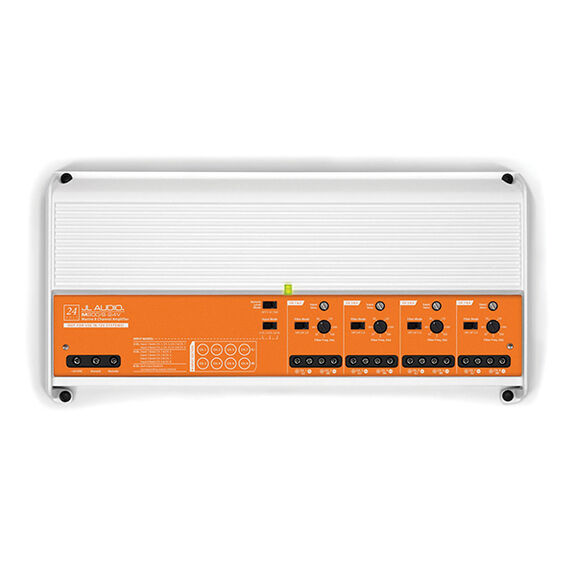

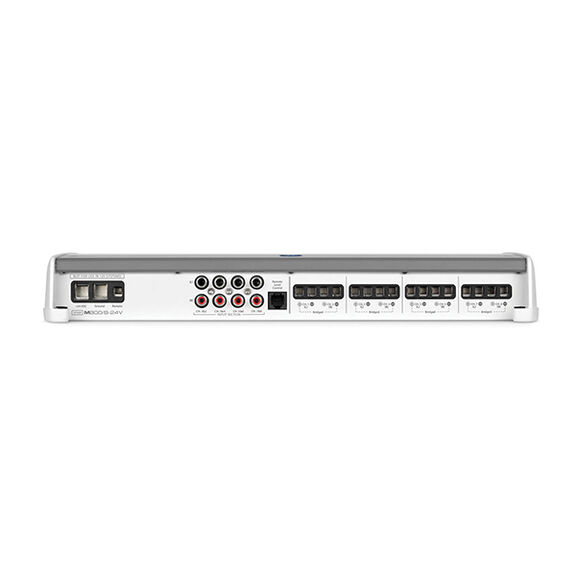

M800/8-24V Class D Full-Range Marine Amplifier
Complete Your Purchase
The M800/8-24V includes a 12dB/octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50 to 500Hz. With the addition of an HD-RLC remote level control, you have the ability to control the level of two, four or all eight of the amplifier's channel levels from the driver's seat. This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment. This amplifier is designed for operation in vessels with 24 Volts, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 Volts may result in damage to the product and will void the warranty.
- This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment
- This amplifier is designed for operation in vessels with 24 Volts, negative-ground electrical systems
- Includes a 12dB/octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50 to 500Hz
- Frequency response: 12Hz to 22kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >104dB below rated power (A-weighted, 20Hz to 20kHz noise bandwidth)
- Input voltage range at RCA inputs is switchable from 200mV - 2VRMS (Low) to 800mV to 8VRMS (High)
- Minimum copper power/ground wire gauge of 4 AWG
- Fuse rating of 40 Amps (AFS, AGU or MaxiFuse™)
- 800 Watts
