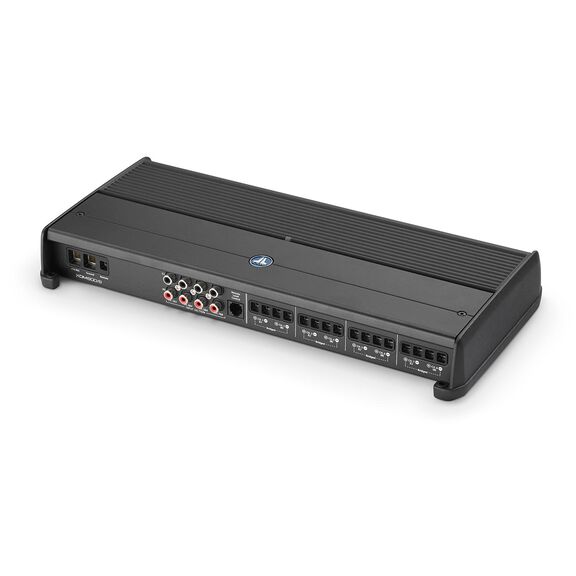

XDM800/8 - 8 Ch. Class D Full-Range Marine Amplifier, 800W

XDM800/8 - 8 Ch. Class D Full-Range Marine Amplifier, 800 W

8-Channel Class D Full-Range Marine Amplifier, 100 W x 8 @ 2 Ω / 75 W x 8 @ 4 Ω - 14.4V

The ultra-versatile XDM800/8 delivers eight channels of crystal-clear, full-range power and is capable of delivering a whopping 100 watts to each of its channels @ 2 ohms (14.4V, 1% THD). The technology that makes this much power possible in such a compact chassis is our advanced NexD™ high-speed switching design, which permits full bandwidth Class D operation with extremely low distortion and remarkable efficiency.

Suitable for boat installations, the XDM800/8 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM800/8 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter, and offers continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional MHD-RLC (water-resistant) remote level controller (sold separately), you have the ability to adjust the level of two, four, or all eight amplifier channels directly from the cockpit.

Here are a few examples of how the XDM800/8 can be used:

• Eight-channel Satellite Amp: drive four pairs of speakers with 75 W x 8 Big Four-Channel Satellite Amp: bridge to produce 200W x 4 @ 4Ω
• Six-Channel System Amp: drive front and rear satellites with 75 W x 4 @ 4Ω, plus two 4Ω subwoofers with 200 W each
• Staggered Six-Channel Satellite Amp: drive front speakers with 200 W x 2 @ 4Ω, plus four 4Ω speakers with 75 W each
• Staggered Five-Channel Satellite Amp: drive three front speakers with 200 W @ 4Ω + rear speakers with 75 W x 2
• Four-Channel System Amp: drive left and right speakers with 200W x 2 @ 4Ω, plus two 4Ω subwoofers with 200W each

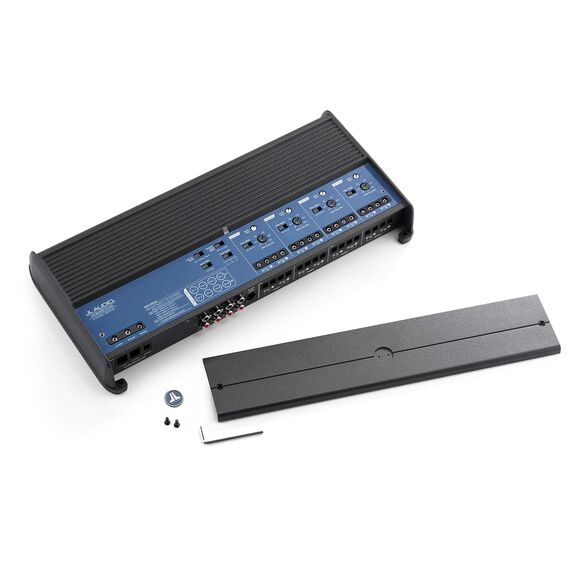

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
