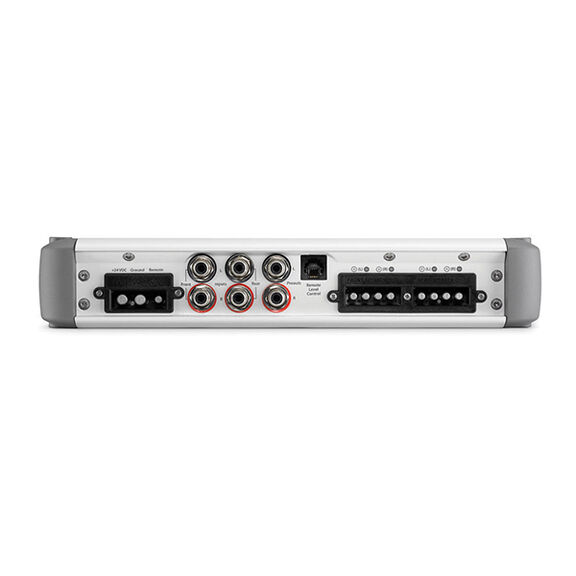

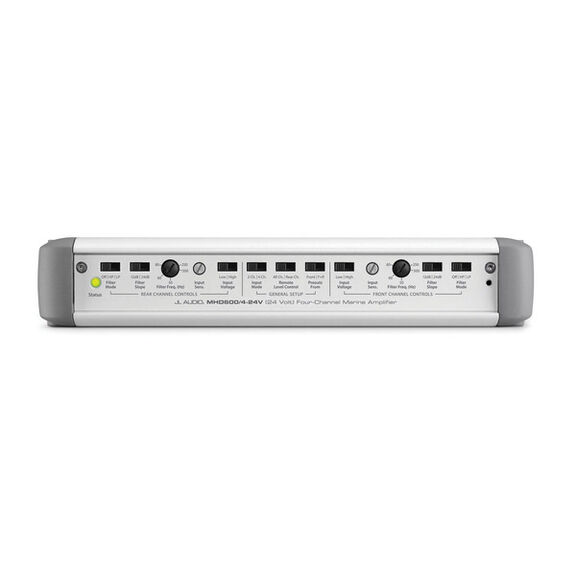

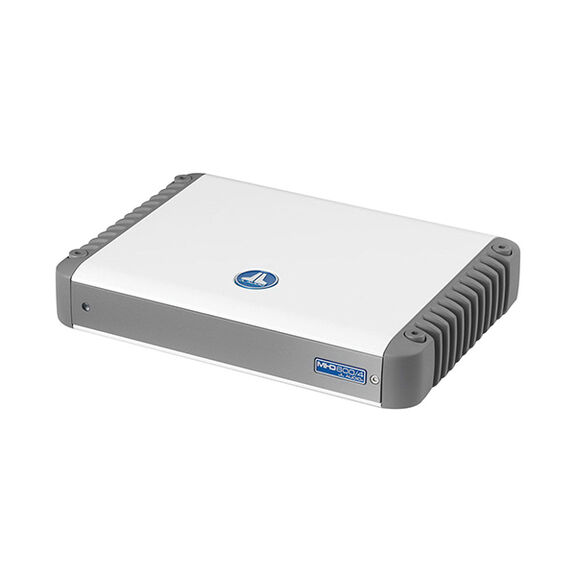

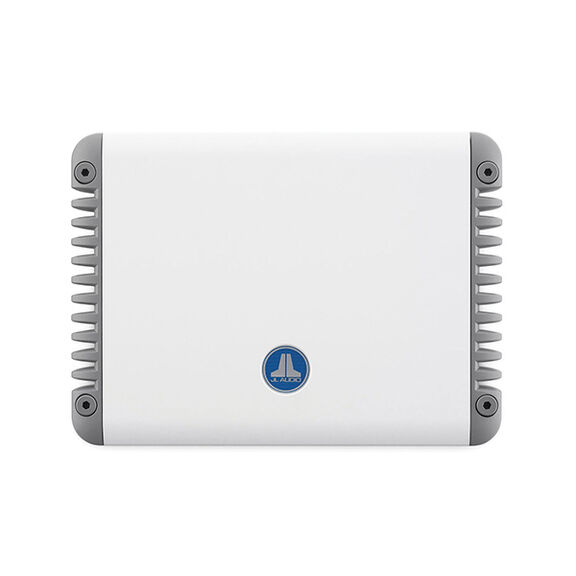

MHD600/4-24V Class D Full-Range Marine Amplifier
Complete Your Purchase
This compact, multi-channel powerhouse employs our single-cycle control switching design and R.I.P.S. technology to deliver 150 Watt x 4 or 300 Watt x 2. Tight power supply regulation keeps distortion down and maximizes sound quality. The MHD600/4-24 Volt is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150 Watt x 2 to the satellites and 300 Watt x 1 to a subwoofer system. This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment. This amplifier is designed for operation in vessels with 24 Volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 Volts may result in damage to the product and will void the warranty.
- Ideal satellite amplifier, delivering huge dynamics with pristine resolution
- Tight power supply regulation keeps distortion down and maximizes sound quality
- This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment
- This amplifier is designed for operation in vessels with 24 Volts, negative-ground electrical systems
- Frequency response: 6Hz to 30kHz (+0, -1dB)
- S/N Ratio, referred to highest rated power: >110dB (A-weighted, 20Hz to 20kHz noise bandwidth)
- Input voltage range at RCA inputs is switchable from 200mV to 2VRMS to 800mV to 8VRMS
- Minimum copper power/ground wire gauge of 4 AWG
- Fuse rating of 25 Amps (AFS, AGU or MaxiFuse™)
