Bilge Pump High Water Sensor

Bilge Pump High Water Sensor

3.2 out of 5 Customer Rating
-
+
Availability
  • In Stock
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

$98.99
This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 14562243 Mfg # 72303
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

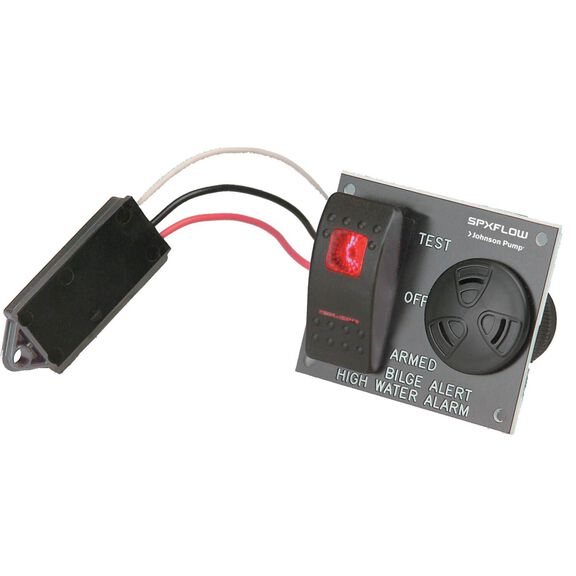

The sensor measures a small 26 mm wide x 64 mm long x 5 mm thick (1.04 x 2.5 x 0.2 in) which makes it very easy to mount. Detector cells are totally sealed, are never in contact with the water, will not corrode and are not affected by oil or foreign debris.

Features

  • No moving parts
  • Totally sealed solid state electronics and field detectors
  • No mercury
  • No exposed sensors eliminate corrosion possibilities
  • Unique 3-way switch disables piezo alarm while keeping warning LED lit
  • Environmentally sensitive
  • Meets ISO 8846

The Bilge Alert sensor should be mounted on the bulkhead, stringer, inner transom or hull of your boat above the normal operating level of your automatic float switch, but below the level of critical components of your boat and/or engine; such as the starter. If water disrupts the sensor for more than 8 seconds the alarm and warning LED will be triggered.

Field effect dector cells
Mirus™ dector cells are composed of an active device and an electrode surrounded by a second electrode. The applied circuit creates an electric field around the cell. When a dielectric material (such as bilge water) interrupts the field the active device responds by outputting a signal. In the case of the Bilge Alert, this signal is used to sound a loud (100db) alarm and light a warning lamp on the control panel.

Technical Data

  • Width: Detector 26 mm - 1.04", Alarm 63 mm - 2.47"
  • Height: Detector 5 mm - 0.2", Alarm 50 mm - 1.97"
  • Length: Dectector 64 mm - 2
  • Wire size 16 Ga. Tin coated
  • Housing ABS Thermoplastic
  • Wire length 762 mm - 30"
  • Passive amp 16 mA Max amp 20A, 12 V



Type Alarms
