Extreme Duty Performance Trim Tab Kit, 19"L x 14"W, Dual Actuator, 12-Volt

Extreme Duty Performance Trim Tab Kit, 19"L x 14"W, Dual Actuator, 12-Volt image number null
Extreme Duty Performance Trim Tab Kit, 19"L x 14"W, Dual Actuator, 12-Volt image number null
Extreme Duty Performance Trim Tab Kit, 19"L x 14"W, Dual Actuator, 12-Volt image number null

Extreme Duty Performance Trim Tab Kit, 19"L x 14"W, Dual Actuator, 12-Volt

3.6 out of 5 Customer Rating
-
+
Availability
  • In Stock
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

Protect Your Purchase

Add extra coverage from the date of purchase beyond the manufacturer’s warranty. Details

What's Covered?

PLUS adds up to 2 more years of coverage beyond the Manufacturer's Warranty and offers extra coverage from the date of purchase throughout the extended term. PLUS includes:

  • Wear and Tear Coverage
  • Power Surge Protection
  • Exchange for products under $400
  • Onboard service on products over $750
  • Up to 5 years of total coverage

Your PLUS plan goes into effect with your purchase ‐ no registration required. Purchase your PLUS plan online, in stores or by calling 1 (800) 262-8464.

$121.49
$199.49
$1,769.99
This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 11036019 Mfg # 15046-101
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store

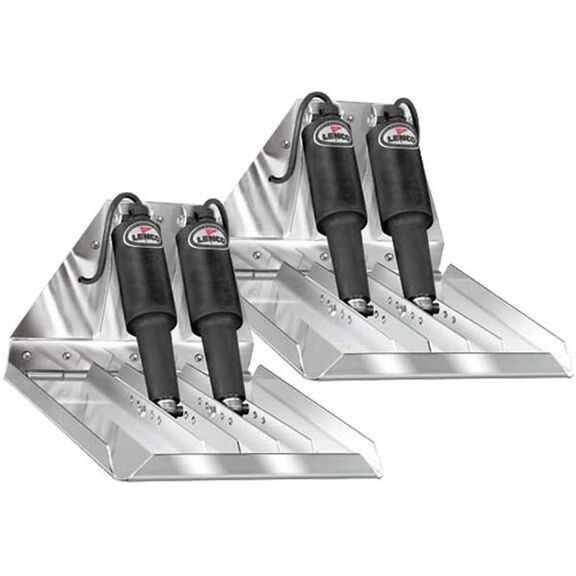

Give your boat the reliability, power and quick response of electric trim tabs.

Kit features 10-gauge, rectangular, electro-polished, 304 stainless steel blades with 1” turned up edges and tapered back plate. C-channel mounting brackets enable you to optimize the location of the actuator mounting point. The large back plate adds to overall strength by distributing the load against the transom. Kits come with XD Extreme Duty Actuators factory assembled to the back plate and blade, which includes a 3 3/4" diameter sacrificial anode. A minimum transom height of 10 1/2" is required for installation.

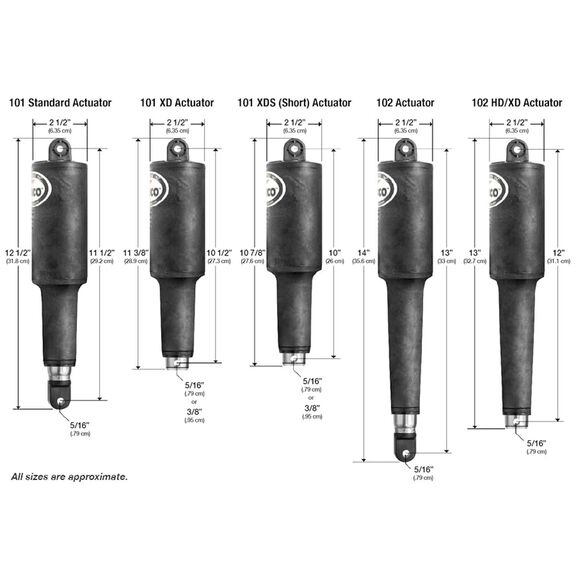

About the actuators

Lenco electric actuators are built around a proven-dependable ball screw design that is twice as powerful as comparable hydraulic models. More power is complemented by an instant response to helm commands, which means you can correct your boat's trim angle much faster than with hydraulic designs. Actuators are (of course) fully submersible, with a sealed design and "plug and play" waterproof Deutsch connections, which also help to make installation easy.

Key Features

  • 10-gauge stainless steel construction
  • Large back plate adds strength to installation
  • C-channel optimizes actuator mounting point
  • Tabs include 3 3/4" diameter sacrificial anode

Kit Contents

  • Two rectangular, 10-gauge stainless steel trim tab planes with tapered back plates
  • Four XD Extreme Duty Actuators with 6' lead and Deutsch plugs
  • Lenco Owner’s/Installation Manual

NOTE: Four Actuator Extension Harnesses (one per actuator) are required for installation and are sold separately. Switch Kits and boat mounting hardware are also sold separately.

Compatibility Boats 23 to 45 Feet Long
Dimensions 19" Length x 14" Width
Style Extreme Duty
Trim Tab Actuator Electric Double
Trim Tab Control Type Switch Kit Sold Separately
Type Trim Tab Kits
Voltage 12 Volts DC
Warranty Three Year Limited
