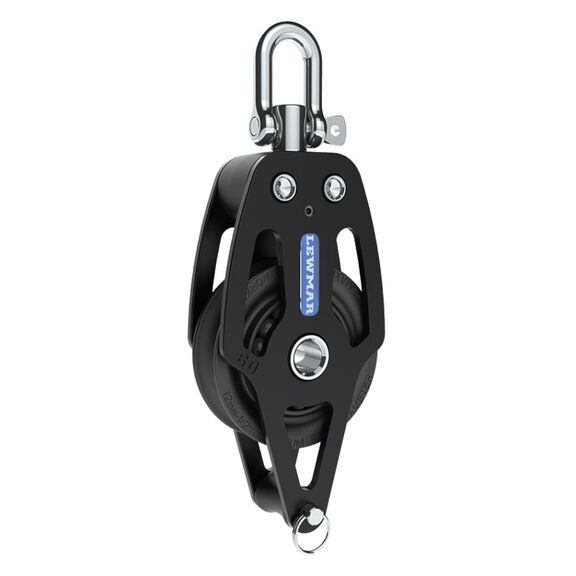

Lewmar 60 mm HTX Block - Swivel, Becket

Lewmar 60 mm HTX Block - Swivel, Becket

Years of design and manufacturing experience, combined with close collaboration with boat builders, designers, and sailors, have produced the Lewmar HTX Hardware Range. Drawing upon the proven design of the Racing Range, HTX blocks are constructed simply from high-quality materials that deliver enhanced reliability and long-term durability. These blocks are ideal for frequently adjusted, highly loaded systems using modern line technology and reduced line diameters.

The 60 mm HTX Block with Swivel and Becket is the workhorse of the HTX family, offering a single-sheave layout with an integrated becket that enables clean termination for cascade and fine-tune systems. The swivel head — inspired by Lewmar's acclaimed Racing Range — rotates freely and locks securely via a grub screw mechanism, ensuring the block stays aligned under changing load angles. The central plain bearing delivers peak efficiency even under substantial loads, while the side thrust Delrin ball bearings minimize friction and support smooth, consistent line movement. The aluminium side cheeks provide maximum strength and resilience to withstand even the most demanding sailing conditions.

This block handles lines up to 1/2 inch (12.5 mm) in diameter and carries a safe working load of 1,100 kg (2,422 lbs) with a breaking load of 2,200 kg (4,845 lbs). At only 7.9 oz (226 g), the block offers an outstanding strength-to-weight ratio suited to performance cruising and racing applications including halyards, mainsheets, mast base, and boom vangs on vessels ranging from 31 to 50 feet.

Key Features

• Strong aluminium side cheeks for maximum strength and resilience
• Central plain bearing for efficiency at high loads
• Side thrust Delrin ball bearings to minimize friction
• Swivel head design inspired by the Lewmar Racing Range
• Grub screw swivel head locking mechanism for secure positioning
• Accepts lines up to 1/2" (12.5 mm) diameter
• Safe working load: 2,422 lbs (1,100 kg)
• Breaking load: 4,845 lbs (2,200 kg)
• Lightweight at 7.9 oz (226 g)
• Integrated becket for cascade and fine-tune system termination
• Shackle post: 15/32" (11.9 mm); Max pin: 1/4" (6 mm)
