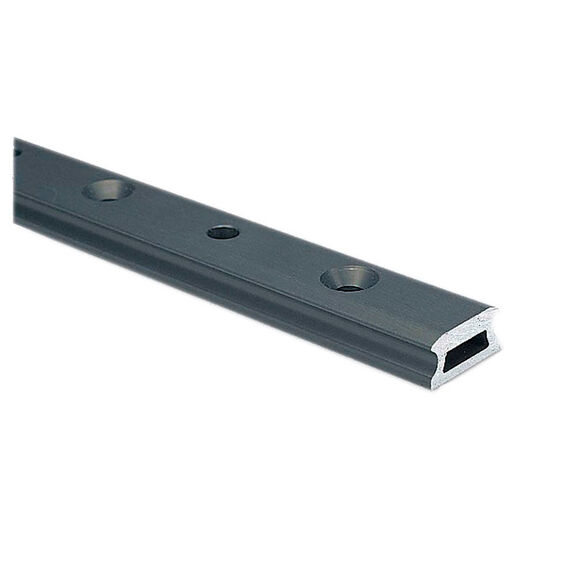

Size 1 Low Profile Track with Plunger Holes, 5' (1.526m)

Lewmar Size 1 Low Profile Track with Plunger Holes, 5' (1.526m)

The Lewmar Size 1 Low Profile Track with Plunger Holes is a versatile, general-purpose drilled aluminum track engineered for reliable performance on a wide range of sailboat configurations. Measuring 5 feet (1.526 meters) in length, this track is designed for use with plunger stop cars and provides a secure, low-profile mounting solution for traveler systems and genoa lead applications.

Constructed from high-quality aluminum with a silver anodized finish, the track offers excellent corrosion resistance and long-lasting durability in marine environments. Its low-profile design keeps deck hardware streamlined while maintaining the structural integrity required for demanding sailing conditions. The track uses 1/4-inch fasteners (Hex Head M6) and features a maximum span between fixings of 3-15/16 inches (100 mm), ensuring consistent load distribution along its length.

This drilled plunger track is especially useful in situations where through-deck fixing is not feasible, such as on double-skinned boats where fixing bolts are trapped into a plate embedded in the deck. It is also available as a sliding bolt track that enables retrofitting using the same bolt hole pattern as the original installation, making it an excellent upgrade or replacement option for existing traveler systems.

Key Features

• General-purpose drilled plunger track for use with plunger stop cars
• Length: 5 ft (1.526 m) — ideal for a range of traveler and genoa lead applications
• Size 1 low-profile track; uses 1/4" (Hex Head M6) fasteners
• Silver anodized aluminum construction for corrosion resistance
• Height: 9/16 in (15 mm); Width: 1-3/16 in (30 mm)
• Weight: 26.96 oz (764 g)
• Maximum span between fixings: 3-15/16 in (100 mm)
• Ideal for double-skinned boats where through-deck fixing is not possible
• Compatible with retrofit sliding bolt track installation using existing bolt hole pattern
