Synchro Block Snap Shackles
Model #
3734407
Mfg #
29926040
$42.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Select a Product:

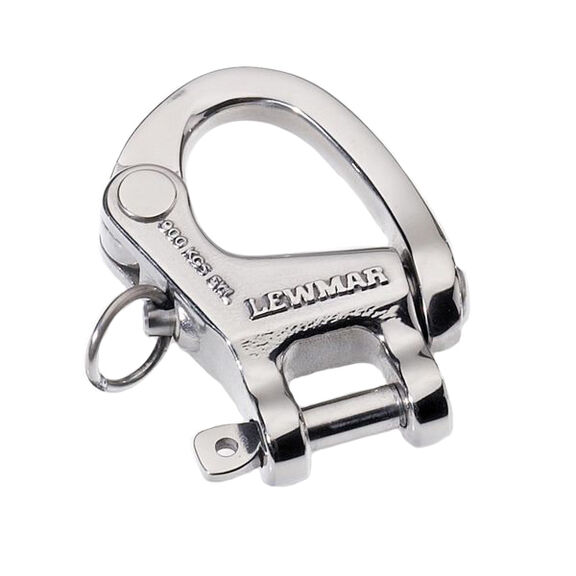

Block Snap Shackle fits 60mm
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
NEW ENGLAND ROPES
$0.27
-
$6.39
Price reduced from
$2.19
to
-
Price reduced from
$6.39
to
Select Items on Clearance
Add quick-release function to Synchro blocks.
Cruisers love Lewmar Synchro blocks for their strength and ability to adapt to different applications; adding a snap shackle makes them all the more versatile. These snap shackles are designed to replace the existing standard shackle on Synchro blocks and are also compatible with the Lewmar HTX and Control Block lines. Each pin is engineered to mate perfectly with the block’s shackle post to maximize contact and prevent wear. Use the selection table below to identify the correct snap shackle for your blocks. Make your existing blocks even more versatile by swapping out the standard shackle for a Lewmar Synchro snap shackle.
Key Features
- Adds quick-release capabilities to Synchro, HTX and Control blocks
- Pin diameters are engineered for maximum contact with blocks’ shackle post to reduce wear
- 316 stainless steel construction for excellent strength and superior corrosion resistance
- Ring pull releases shackle to move or stow
- Available in several sizes to mate with different Lewmar series blocks
- May be compatible with other blocks; use dimensions in the table below to confirm sizing
Selection Guide
| Model | Fits | Working Load Limit | Breaking Load | Pin Diameter | Max Shackle Post Dia | Fork Depth (Pin to Top of Shackle Post) | Interior Shackle Opening |
|---|---|---|---|---|---|---|---|
| Fits 50mm | 50 Synchro / 30 & 40 Control Single / Double | 990 lbs. (450 Kg) | 1980 lbs.(900 Kg) | 1∕8" (4mm) | 3/8" (9mm) | 3/16" (4.5mm) | 1/2" (12mm) |
| Fits 60mm | 60 Synchro / 50 HTX / 30 Control Triple | 1760 lbs. (800 Kg) | 3520 lbs. (1600 Kg) | 3∕16" (5mm) | 1/2" (12mm) | 1/4" (6mm) | 9/16" (14mm) |
| Fits 72mm | 72 Synchro / 60 HTX / 40 Control Triple | 2420 lbs. (1100 Kg) | 4840 lbs. (2200 Kg) | 1∕4" (6mm) | 1/2" (13mm) | 1/4" 6.5mm) | 11/16" (18mm) |
| Fits 90mm | 90 Synchro / 72 HTX | 4400 lbs. (2000 Kg) | 8800 lbs. (4000 Kg) | 3∕8" (9.5mm) | 11/16" (17.5 mm) | 5/16" (7.5mm) | 7/8" (22mm) |
Mount Type
Complementary Hardware
Safe Working Load
1760 Pounds
Type
Snap Shackle Adapter
