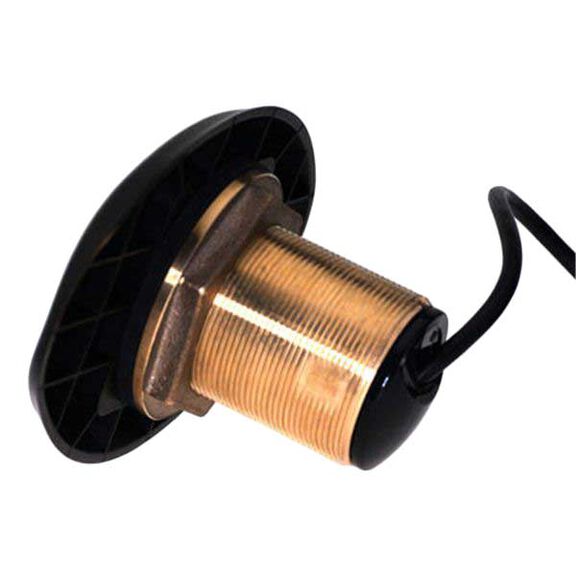

0° Tilt Thru-Hull Hybrid Dual Imaging Transducer
Model #
14706600
Mfg #
000-11133-001
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
0° Tilt Thru-Hull Hybrid Dual Imaging Transducer
Model #
14706600
Mfg #
000-11133-001
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
0° non-tilted element thru-hull provides 50/200kHz traditional frequencies plus 455/800kHz DownScan Imaging plus temperature. Provides no hull deadrise compensation and fits boats with 0° to 7° deadrise. Compatible with HDS Gen2 Touch, HDS Gen2, Elite-7 HDI and Simrad NSS.
- Transmit Power: 600W (RMS)
- Beamwidth: 50kHz: 45°, 200kHz: 11°, 455kHz: Fore to aft 2.8°, Port to starboard 56°; 800kHz: Fore to aft 1.6°, Port to starboard 32°
- Frequency: 200/50, 455/800kHz
- Max. Depth: 50kHz 3,000', 200kHz 1,000', 455kHz 300', 800kHz 100'
- Cable: 33' with blue 7-pin connector
- Compatible Hull Materials: Fiberglass or wood
- Hole Diameter for Installation: 2 3/8"
Type
Thru-Hull
Beam
16x25 Degrees Low-Frequency
Deadrise Angle
0 to 6 Degree
Frequency
50/200+ 455/800kHz
Material
Bronze
Maximum Depth
2500 Feet
Sonar
Depth
Type
Thru-Hull
