Elite-4 HDI Chartplotter/Fishfinder with 83/200 455/800kHz Transducer & Nautic Pro Cartography
Model #
17030388
Mfg #
000-11216-009
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Elite-4 HDI Chartplotter/Fishfinder with 83/200 455/800kHz Transducer & Nautic Pro Cartography
Model #
17030388
Mfg #
000-11216-009
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+

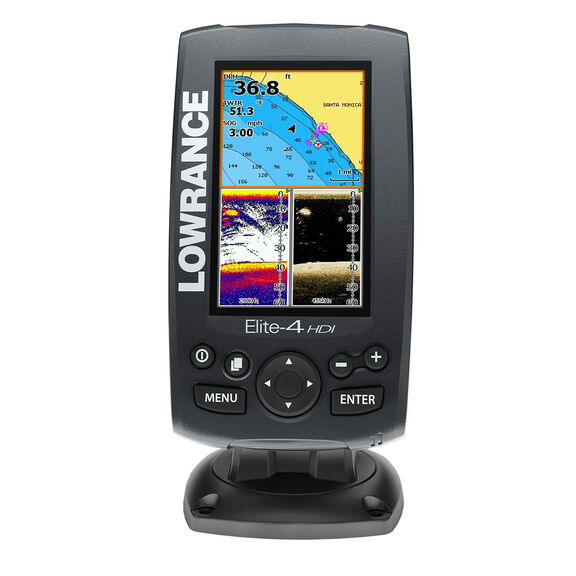

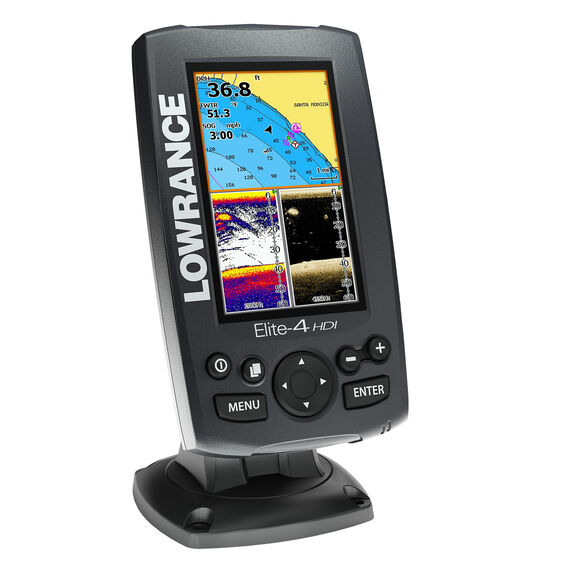

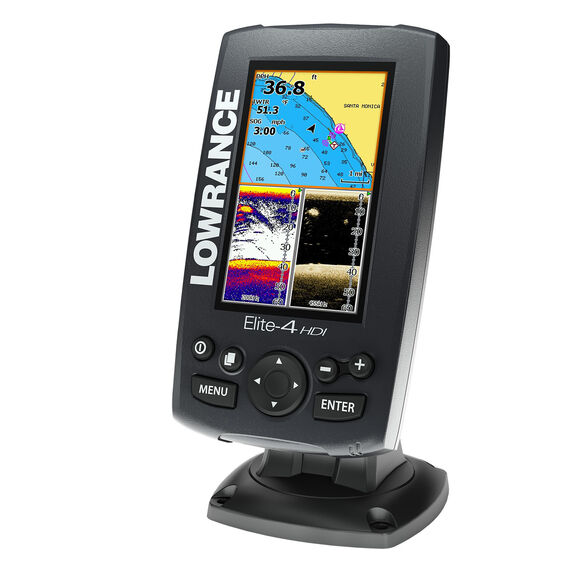

The easy-to-use, compact Elite-4 HDI combines a super-bright, LED-backlit color display and a built-in GPS antenna with a full selection of today's top-selling fishfinder and chartplotter features that are easy to access and operate - all at a surprisingly affordable price - and comes pre-packaged with Nautic Pro cartography.
Features:
- Lowrance-exclusive, high-resolution, 4.3-inch, LED-backlit display with 70% more pixels and 36% more usable screen area than previous Elite-4 series displays.
- Exclusive Hybrid Dual Imaging (HDI) – Broadband Sounder plus DownScan Imaging - the power of two award-winning technologies combined to provide the best possible view beneath your boat.
- Includes Nautic Insight PRO cartography.
- DownScan Overlay technology overlays DownScan Imaging onto Broadband Sounder.
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly.
- TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint.
- New easy-to-use page selector menu with quick access to all features using one-thumb operation.
- Multi-Window Display lets you quickly and easily choose from pre-set page layouts - including a three-panel view with chart, Broadband Sounder and DownScan Imaging.
Specifications:
- Display Type: Elite-4 HDI Series: 16-bit SolarMAX™ PLUS TFT
- Horizontal Pixels: 272
- Vertical Pixels: 480
- Receiver Type: Internal high-sensitivity WAAS + EGNOS + MSAS
- Transducer: Transom Mount
- Transducer Frequencies: 83/200, 455/800
- Speed/Temp: Included
- NMEA Interface: VHF and autopilot through NMEA 0183
- Waterproof Rating: IPX7
Type
Fishfinder/Chartplotter Combo
Cartography
Nautic Insight Pro
Diagonal Screen Size
4.3 Inches
Dimensions
3 13/16" Width x 6 5/8" Height
Display Color
Color
Display Shape
Vertical
Display Type
TFT
Frequency
83/200+ 455/800kHz
GPS
Internal GPS Antenna
Maximum Depth
750'
Mount Type
Surface
,
Tilt & Swivel
Resolution
480 x 272
Sonar
Down Imaging
Specific Transducer
HDI Skimmer Transom Mount
Transmit Power
250 Watts (RMS)
Type
Fishfinder/Chartplotter Combo
Warranty
One Year
Waterproof
Waterproof
