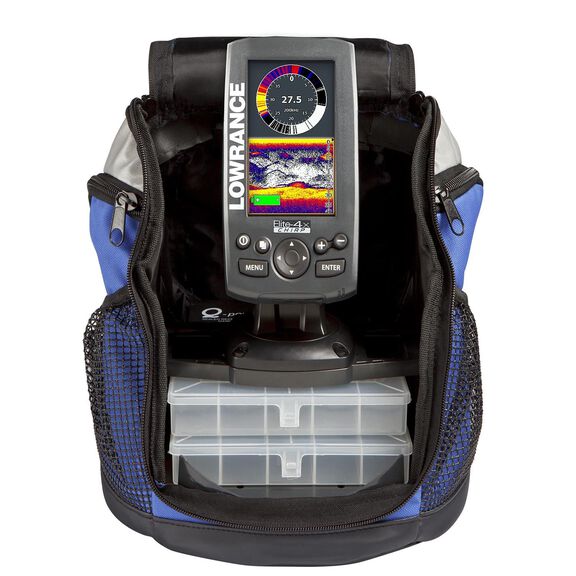

Elite-4x CHIRP IceMachine Fishfinder, with 83/200 Transducer
Easy-to-use 4.3-inch fishfinder featuring CHIRP Sonar, a super-bright, LED-backlit color display, and matched with a portable ice-fishing pack and transducer.
The Elite-4x CHIRP IceMachine is a portable color fishfinder featuring CHIRP sonar technology — providing greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see bait fish and game fish targets – as well as special ice mode software and the Lowrance ice-fishing pack and ice transducer.
CHIRP sonar advantages:
- Easier to identify and distinguish bait and game fish targets
- Better target identification at greater depths
- Mark fish clearly at faster boat speeds
Features
Lowrance-exclusive, brilliant, high-resolution, 4.3-inch, LED-backlit color display
CHIRP Sonar for superior target separation, lure detection and a clutter-free display.
20° sonar coverage down to 1000 ft/305 m with custom, weighted ice fishing transducer and unique float system (included)
Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint.
New page selector menu with quick access to all features using one-thumb operation
Multi-Window Display lets you quickly choose from pre-set page layouts -- including a three-panel view.
Complete portable PPI-18I Ice Pack kit extras, with ice transducer & battery included
Ice Machine™ features
- Weatherproof, soft-sided pack with easy-to-find, front- and rear-zipper access
- Adjustable display platform for easy viewing
- Two StowAway® utility boxes
- 12v battery and charger for a full day of operation
Specifications
- Display: 4.3 inches / 109.22 mm
- Resolution: 16-bit color TFT 480 x 272
- Backlighting: 11-Level LED
- Power Output: RMS (PTP): Max 250W RMS, 30,000W Peak to Peak (analog equivalent)
- Operating Frequency: Low, Med, High (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band)
- Languages: 30
- Operating Voltage: 12 vDC (10-17 vDC min-max)
- Warranty: One year
