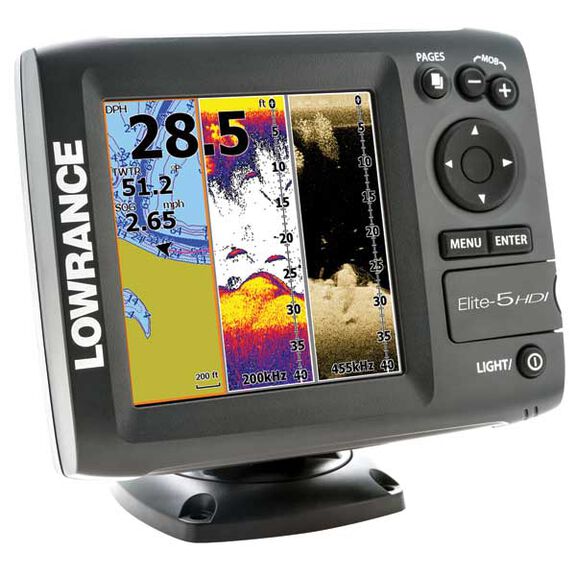

Elite-5 HDI Fishfinder/Chartplotter Combo
The power of two award-winning technologies combined in one Hybrid Dual Imaging (HDI) transducer provide the best possible view beneath your boat. Broadband Sounder™ is excellent for marking fish arches and tracking lure action, with DownScan Imaging™ that reveals easy-to-understand, picture-like detail of bait fish, predator fish and structure with no interpretation needed. Exclusive technology overlays DownScan Imaging onto Broadband Sounder display for one stunning view that separates and clearly exposes fish targets from surrounding structure.
TrackBack™ Into Sonar History: Immediate scroll back in sonar history to review covered areas and pinpoint spots (saving time and fuel by making it simple to retrace your path).
Page Selector: An easier-to-use menu system with quick access to all features using one-thumb operation. Eight preset page layouts. The page selector does not hide live sonar and map screens while you’re making a page decision.
Multi-Window Displays: Lets you choose up to three panels in split-screen mode to view chart, sonar and DownScan Imaging—all on one screen simultaneously.
- Display Type: 256-color SolarMAX™ PLUS TFT
- Screen Size: 5"diag.
- Horiz. Pixel: 480
- Vert. Pixel: 480
- Receiver Type: Internal high-sensitivity GPS antenna (WAAS + EGNOS + MSAS) with external antenna option
- Preloaded Cartography: Enhanced US Lakes
- Dimensions: 6 15/16"W x 5 7/16"H x 2 1/2"D
- Frequency: 50/200/455/800kHz
- Transmit Power: 500W (RMS)
- Maximum Depth: 2,500'
- Transducer: Transom-mount included
- NMEA Interface: NMEA 0183 output
- Waterproof Rating: IPX7
