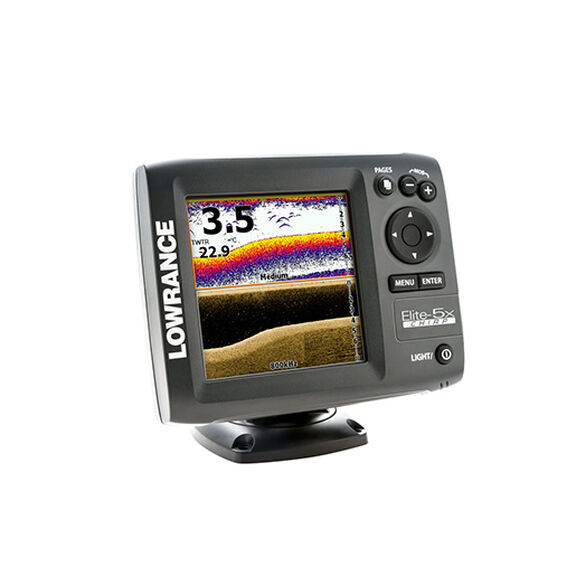

Elite-5x CHIRP Fishfinder with 50/200 + 455/800kHz Transducer
The Elite-5x CHIRP Fishfinder gives you CHIRP sonar technology, providing greater sensitivity, improved target resolution and superior noise rejection for clearer, easy-to-see baitfish and gamefish targets. CHIRP combines with proven DownScan Imaging™ for picture-like views of structure and bottom detail. Until CHIRP, most fishfinders used a single-frequency signal, considered to be the sonar standard. Because CHIRP sonar uses multiple frequencies at once, you are able to see fish targets better than ever before. Individual gamefish are now more easily identified in or around bait schools, and gamefish are more easily seen when holding near structure or the bottom. The bright display lets you see what’s there in all conditions, and you can create your own custom maps using Insight Genesis™.
Elite-5x CHIRP features:
- Multiple CHIRP ranges from a single transducer
- CHIRP sonar performance with a greater number of affordable transducers, including the Lowrance HDI Skimmer®
- View multiple CHIRP sonar settings on one display
- DownScan Imaging™ provides picture-like images of fish-holding structure beneath the boat
- Selectable single-frequency sonar operation with award-winning Broadband Sounder™ performance.
- Brilliant Elite color display for enhanced widescreen visibility and viewing detail in all conditions
- DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- TrackBack™ to review recorded sonar history including structure, transitions or fish targets
- New page selector menu with quick access to all features using one-thumb operation
- Multi-Window Display lets you quickly choose from pre-set page layouts, including a three-panel view
Elite-5x CHIRP Specs:
- Display Type: 256-color TFT
- Screen Size: 5"diag.
- Screen Resolution: 480 x 480
- Transducer: Transom mount included
- Frequency: 455/800 kHz (DownScan Imaging™), Low, Med, High (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band)
- Dimensions: 6 7/8"W x 5 3/8"H x 2 1/2"D
- Transmit Power: Max 250W RMS (analog equivalent)
- Maximum Depth: DownScan Imaging™ at 455kHz: Max 300'; CHIRP High Range/200kHz: 1,000'; CHIRP Med Range/83kHz: 1,000'; CHIRP Low Range/50kHz: 3,000'
- Speed/Temp: Yes
- NMEA Interface: No
- Waterproof Rating: IPX7
