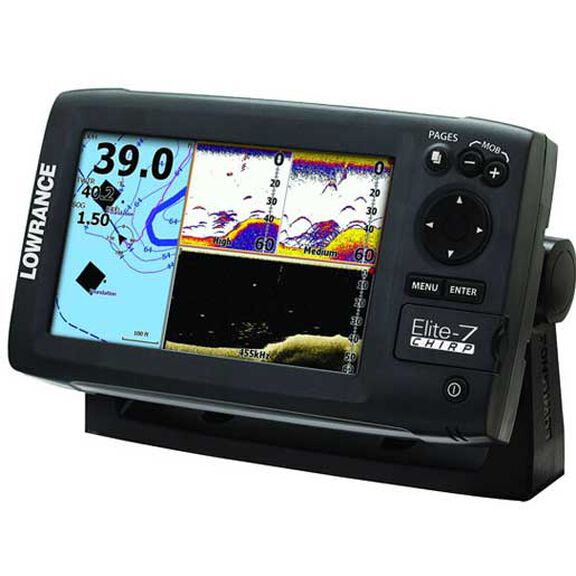

Elite-7 CHIRP Fishfinder/Chartplotter Combo with 83/200kHz CHIRP Transducer
The Elite CHIRP Series includes all of the proven features of the Elite Series with the addition of CHIRP Sonar technology—providing greater sensitivity, improved target resolution, and superior noise rejection for clearer, easy-to-use baitfish and gamefish targets.
Elite-7 CHIRP Fishfinder/Chartplotter is a 7" diagonal combo that harnesses CHIRP Sonar. CHIRP sonar makes it easier to identify and distinguish bait and gamefish targets, provides better target identification at greater depths, and allows you to mark fish clearly at faster boat speeds.
Highly accurate built-in GPS antenna plus detailed US map: Featuring more than 3,000 lakes and rivers, Lowrance technology allows you to create your own map from real sonar data that you record with Insight Genesis™ (200kHz recommended for sonar recording). Optional chart upgrades include Lake Insight™ and Nautic Insight™ PRO, as well as HD, Navionics® Gold and Jeppessen C-Map Max-N.
Advanced fishfinding plus ease of use: TrackBack™ to rewind recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint (on chartplotter models). Page Selector menu provides quick access to all features using one-thumb operation, and multi-window display lets you quickly choose from pre-set page layouts—including a three-panel view with chart, CHIRP sonar options and DownScan Imaging.
How Multiple CHIRP sonar settings provide clarity
Multiple CHIRP ranges from a single transducer: Because Lowrance fishfinders give you the option of using more than one CHIRP Sonar signal, it’s important to understand which one is right for your fishing situation.
High CHIRP frequency selection: Most frequently used for freshwater as well as more shallow coastal areas. It provides the greatest detail for tracking smaller objects, like your lure, or identifying game fish from bait fish, as well as game fish that are near structure or on the bottom.
Medium CHIRP frequency selection: Wide coverage makes this frequency best for covering large areas while searching for structure or fish. However, this option is not as detailed as High CHIRP and will not penetrate as deep as Low CHIRP.
Low CHIRP frequency selection: Provides the greatest depth performance, while marking fish targets throughout the entire water column.
- Display Type: SolarMax™ Plus 16-bit color
- Screen Size: 7" diagonal
- Screen Resolution: 800 x 480
- Included Cartography: Enhanced US Lakes
- Optional Cartography: Lake Insight™ and Nautic Insight™ PRO and HD, Navionics® HotMaps® Premium, Fishing Hotspots® PRO and Jeppessen C-Map Max-N
- Receiver Type: Internal high-sensitivity WAAS + EGNOS + MSAS
- NMEA Interface: NNEA 0183 and NMEA 2000
- Frequency: Low, Med, High (CHIRP), 83/200kHz (Narrow Band)
- Transducer: Transom mount included
- Maximum Depth: CHIRP Sonar High Range/200kHz: 1,000', CHIRP Sonar Med Range/83kHz: 1000', CHIRP Sonar Low Range: 3,000'
- Dimensions: 9 1/4"W x 5 15/16"H x 3"D
- Waterproof Rating: IPX7
