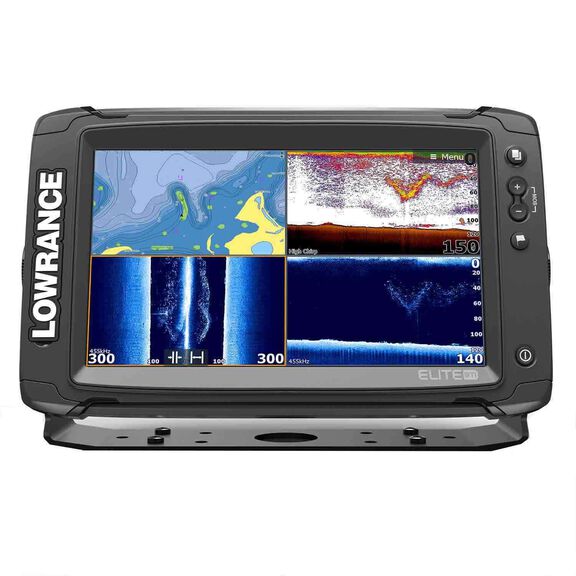

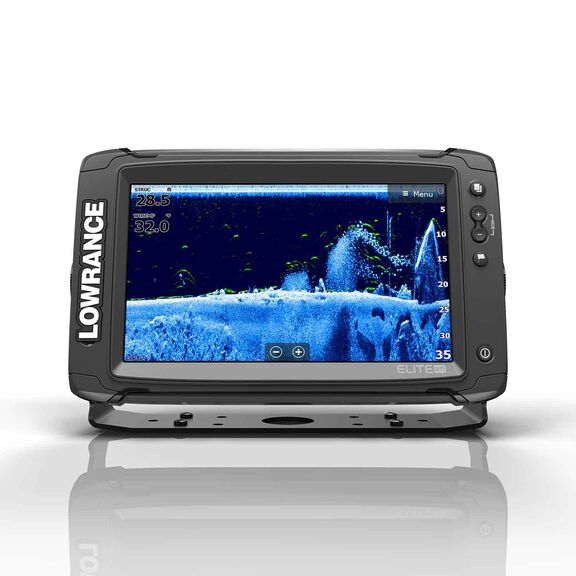

Elite-9 Ti Fishfinder/Chartplotter Combo with TotalScan™ Transducer and C-Map Insight Pro charts
Top-of-the-line sonar technologies provide the best possible view of the environment beneath your boat.
The letters "Ti" in the Elite-9 Ti name stands for "Touch interface," an intuitive new operating system that provides fast, fingertip access to all Elite-9 Ti features. Sporting a widescreen 9" diagonal, high-resolution multi-touch touchscreen display, Elite-9 Ti has your sonar needs covered with support for StructureScan® HD, Low/Med/High CHIRP and the TotalScan™ all-in-one transducer. With built-in coastal/Lake C-MAP Insight PRO charts, a built-in GPS antenna and reliable Lowrance navigation technology, navigation is accurate and easy with Elite-9 Ti.
Includes StructureScan® HD compatibility and support for Low/Mid/High CHIRP and 83/200/455/800kHz frequencies. The Elite-Ti also features integrated Bluetooth® and wireless connectivity that not only allows you to download software updates directly to the unit, but gives you the capability to download Insight Genesis custom maps to the unit—for immediate use—directly from the water.
TotalScan™ Transducer: TotalScan™ matches proven Broadband Sounder and CHIRP Sonar with StructureScan® HD and DownScan ImagingTM technology — making it possible to target fish and search for fish-holding structure with the same transducer. The TotalScan™ transducer features multiple mounting options and is fully compatible with displays featuring integrated support for StructureScan® HD, like Elite-Ti.
FishReveal™ Smart Target Viewing: A massive leap forward in fish-finding technology, FishReveal makes it easier to see fish on DownScan Imaging™. Unlike traditional CHIRP views that provide strong fish targets, but lack refined structure detail, or DownScan Imaging that provides photo-like images of the bottom and structure details but shows fish targets as tiny dots -- FishReveal Smart Target Viewing blends the best data from both, eliminating the need for split-screen viewing and interpretation.
C-MAP Navigation Palette: C-MAP charts just got a major upgrade in readability that is most apparent near shore, where colors used for land, docks, anchorage areas, water, and channels are nicely differentiated and water contour lines are distinct. The new palette makes it easier to tell where the boat is in relation to a channel, navaid, ledges and drop-offs, or a point of land. The color scheme is also much easier on the eye.
Automatic Routing: Get faster and easier navigation with automatic route planning. This feature simplifies route creation by automatically plotting the shortest and safest course based on the boat's draft, beam
Power Pole® Connectivity: You can use the built-in wireless connectivity of Elite-Ti displays to control one or more Power-Pole® Shallow Water anchors, equipped with the C-Monster Control System. Enjoy independent or simultaneous control of multiple power poles and make manual or automatic adjustments directly from your touchscreen.
Insight PRO by C-MAP: Insight PRO charts include continental US coverage of inland and coastal waters including Fishing HotSpots™, on a single SD card. Includes high definition 1-3’ depth contours for thousands of lakes, high resolution bathymetric and shaded depth contours, custom color palette for user-defined depth ranges.
Key Features:
- High-resolution display: Lowrance-exclusive, SolarMAX™ 1280 x 800 high-resolution, 9" diagonal, LED-backlit color display
- Easy-to-use touchscreen: Multi-touch touchscreen provides fast, fingertip access to all Elite-9 Ti features
- CHIRP Sonar, StructureScan® HD and DownScan Imaging™: Top-of-the line sonar technologies provide the best possible view of the environment beneath your boat. The included TotalScan all-in-one transom mount transducer does it all!
- TrackBack™: Scroll back through your sonar, SideScan or DownScan history to review structure or fish targets and mark the location with a waypoint.
- Internal GPS antenna: Highly accurate, built-in 10Hz GPS antenna
- Optional chart upgrades: Optional Americas chart upgrades include Lake Insight HD by C-MAP, C-MAP MAX-N, Navionics® HotMaps® Premium, Navionics + and Fishing Hotspots® PRO.
- Built-in wireless connectivity: Access to the GoFree™ Cloud where you can shop, purchase, download and immediately use Insight maps, and third-party maps from GoFree partners
- Boat Integration and System Control: Bluetooth® control of Power-Pole® shallow water anchors and SmartSteer™ control of Motorguide® Xi5 Trolling Motors
- microSD card slot for adding maps
What’s in the box
- Sun cover, ELITE Ti
- U bracket (ELITE-9Ti and ELITE-12Ti only)
- Documentation pack
- Fuse holder (ATC blade)
- U bracket knobs (2x) (ELITE-9Ti and ELITE-12Ti only)
- Fuse (3 amp)
- Bracket mounting screws (4 x #10 x 3/4 PN HD SS screws)
- TotalScan transom mount transducer
- Power cable
Specifications
- Display Type: Touchscreen color TFT LCD
- Screen Size: 9" diagonal
- Screen Resolution: 800 x 480
- Receiver Type: 10kHz Internal high-sensitivity WAAS/EGNOS/MSAS
- Included Charts: Insight Pro by C-Map
- Optional Charts: C-MAP MAX-N/N+, Navionics Gold, Platinum+ and Navionics+, Fugawi Aboard, NV Charts
- Frequencies Supported: Low/Mid/High CHIRP and traditional/50/83/200/455/800kHz
- Transmit Power: 500 Watts (RMS)
- Dimensions: 11 1/4"W x 6 7/8"H x 4 5/16"D
- Transducer: Mid/High/TotalScan transom mount
- Voltage: 12V (10-17V DC)
- Amperage: 0.9A at 13V DC, Low power standby mode < 650mA
- Waterproof Rating: IPX6 and IPX7
- Warranty: Two years
