This product is not longer available, we recommend a similar product instead:
Factory Inspected and Certified Demo Unit; ELITE-4 HDI with 83/200 kHz Tran Mt. Transducer and US Base Map Cartography
Model #
17292491
Mfg #
151-10327-001
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Factory Inspected and Certified Demo Unit; ELITE-4 HDI with 83/200 kHz Tran Mt. Transducer and US Base Map Cartography
Model #
17292491
Mfg #
151-10327-001
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+

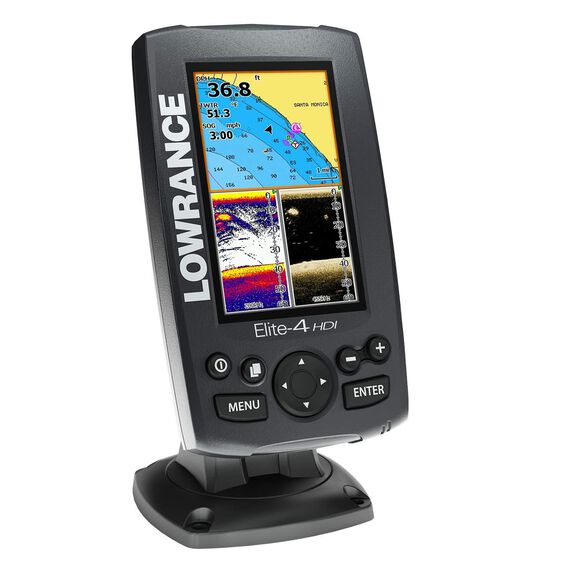

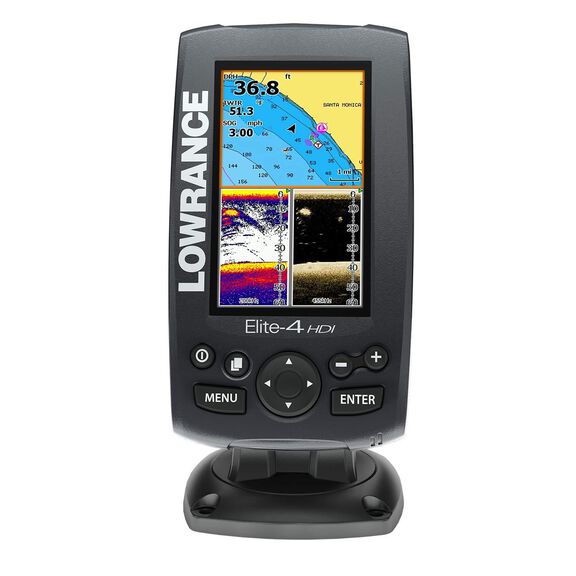

A easy-to-use 4.3-inch fishfinder/chartplotter with Hybrid Dual Imaging™ that combines Broadband Sounder™ with DownScan Imaging™ technology, with a super bright color display, built-in GPS antenna and high-definition mapping. The unit is a factory tested and certified demo unit. 83/200 kHz Transom Mounted Transducer included.
The easy-to-use, compact Elite-4 HDI combines a super-bright, LED-backlit color display and a built-in GPS antenna with a full selection of today's top-selling fishfinder and chartplotter features that are easy to access and operate - all at a surprisingly affordable price - and comes pre-packaged with US Base Map cartography
Features:
- Lowrance-exclusive, high-resolution, 4.3-inch, LED-backlit display with 70% more pixels and 36% more usable screen area than previous Elite-4 series displays.
- Exclusive Hybrid Dual Imaging (HDI) – Broadband Sounder plus DownScan Imaging - the power of two award-winning technologies combined to provide the best possible view beneath your boat.
- Includes Nautic Insight PRO cartography.
- DownScan Overlay technology overlays DownScan Imaging onto Broadband Sounder.
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly.
- TrackBackTM to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint.
- New easy-to-use page selector menu with quick access to all features using one-thumb operation.
- Multi-Window Display lets you quickly and easily choose from pre-set page layouts - including a three-panel view with chart, Broadband Sounder and DownScan Imaging.
Specifications:
- Display Type: Elite-4 HDI Series: 16-bit SolarMAX™ PLUS TFT
- Screen Size: 4.3"diag.
- Horizontal Pixels: 272
- Vertical Pixels: 480
- Receiver Type: Internal high-sensitivity WAAS + EGNOS + MSAS
- Dimensions: 3 13/16"W x 6 5/8"H; 7 1/2"H with bracket
- Transducer: Included
- Transducer Frequencies: 83/200, 455/800
- Transmit Power: 250W (RMS)
- Speed/Temp: Included
- Cartogrpahy: Nautic Insight Pro
- NMEA Interface: VHF and autopilot through NMEA 0183
- Waterproof Rating: IPX7
- Warranty: 6 Months
Type
Fishfinder/Chartplotter Combo
Cartography
Optional Upgrades:
,
Insight USA
,
Navionics Gold
,
Nautic PRO
,
Insight Lake PRO
,
Insight HD East
,
Insight HD West
,
CMAP NT+
Diagonal Screen Size
4.3 Inches
Dimensions
3.8" Width x 6.6" Height x 2.2" Depth
Display Color
Color
Display Shape
Vertical
Display Type
16-Bit Color TFT LED
Frequency
50/200+ 455/800kHz
,
50/200kHz
,
83/200+ 50/200kHz
,
83/200kHz
GPS
Internal GPS Antenna
Maximum Depth
50/200+ 455/800kHz to 1500'
,
50/200kHz to 1500'
,
83/200kHz+ 455800kHz to 1000'
,
83/200kHz to 1000'
Mount Type
Flush
,
Quick Disconnect
,
Tilt & Swivel
,
Portable
Resolution
480 x 272
Sonar
Down Imaging
,
Multi Frequency
Specific Transducer
Dual-frequency Skimmer Transducer (Included)
Transmit Power
500 Watts
Type
Fishfinder/Chartplotter Combo
Warranty
6 Months
Waterproof
Waterproof
