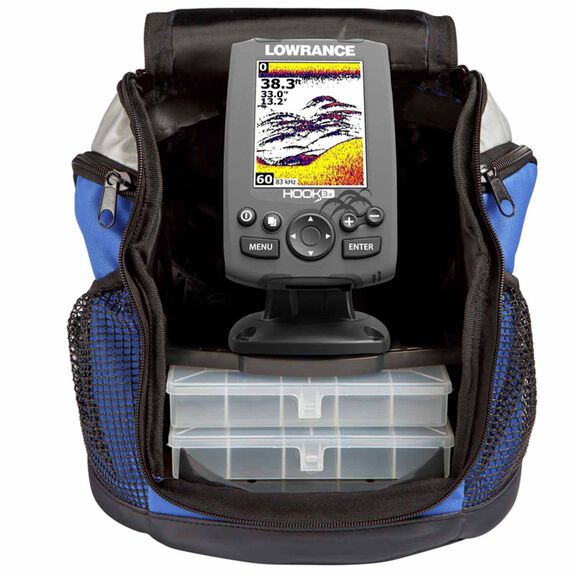

Hook-3x All-Season Fishfinder Pack with Skimmer® Transducer and Dock/Ice Transducer
Top-of-the-line sonar technologies provide the best possible view of the environment beneath your boat.
Accurate CHIRP Sonar: It’s got CHIRP sonar built in, so you get a crisp view of fish, structure and the bottom. CHIRP provides more definition and better target separation than traditional sonar, giving you a clear view of what's down below. Enhanced sonar sensitivity, excellent target separation and superior noise rejection make seeing baitfish and gamefish targets easier. Full color LED-backlit displays are bright and clear in all lighting conditions, and all functions are controlled and accessed via a simple keypad.
Ice fishing compatability: This model comes prepared for the cold with ice mode software and a complete carry case which houses the Hook-4x and system components in an easy-to- transport design. The weatherproof soft-side pack has zippered front and rear access, accessory pockets and an adjustable display platform for your screen. Also included are two StowAway® tackle boxes, a charger, and a battery plus space for one more.
Key Features
- CHIRP Sonar: The power of new and more accurate sonar to provide a better view beneath your boat
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- Convenient Page selector menu with quick access to all features using one-thumb operation
- Multi-Window Display lets you quickly choose from pre-set page layouts - including a three-panel view
- PPI-18I Ice Pack kit includes sealed transducer battery and charger
- Viewing temperature: -20° F
What’s in the Box
- Hook-3x Fishfinder
- Single-frequency transducer
- Power cable
- Documentation pack
- Fuse holder (ATC blade)
- Fuse
- PPI-18I Ice Pack kit
- Sealed rechargable battery
- Weighted conical transducer
- Two StowAway® utility boxes
Specifications
- Display Type: 256 color TFT LCD
- Backlight: LED (11 levels)
- Screen Size: 3.5” diagonal
- Screen Resolution: 320 x 240
- Transducer: Skimmer® transducer
- Frequency: 83/200kHz CHIRP
- Power Requirements: 12V DC
- Transmit Power: 100W (RMS)
- Dimensions: 3 11/16”W x 6 1/2”H x 1 27/32”D
- Power Requirement: 12V DC
- Voltage Input: 10 to 17V
- Amperage: 1.1A
- Fuse: 3A
- Waterproof Rating: IPX7
- Warranty: One year
Optional Accessories (Sold Separately)
| Accessories | Model |
|---|---|
| XT-20BL-20 foot extension cable | 11259322 |
| 7 pin Blue Connector to Bare Wires | 14706568 |
| ST-TBL Speed Temp Sensor | 14272777 |
