This product is not longer available, we recommend a similar product instead:
Clearance
Hook-3x Fishfinder with Dual-Frequency Transducer
Model #
17046624
Mfg #
000-12635-001
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.

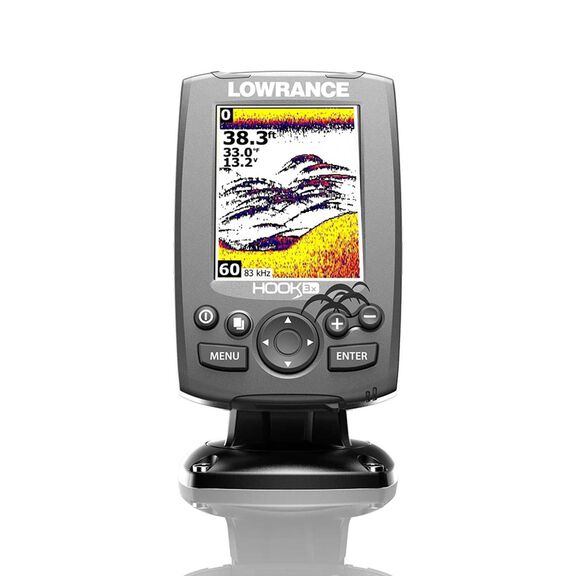

Hook-3x Fishfinder with Dual-Frequency Transducer
Model #
17046624
Mfg #
000-12635-001
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
High-performance dual-frequency Broadband sonar with Advanced Signal Processing (ASP), excellent target separation and superior noise rejection.
Enhanced sonar sensitivity, excellent target separation and superior noise rejection make seeing baitfish and gamefish targets easier. Full color LED-backlit displays are bright and clear in all lighting conditions, and all functions are controlled and accessed via a simple keypad.
Key Features
- 200kHz frequency provides up to 20 degrees of conical coverage for enhanced fish-target separation and lure-tracking – ideal for drop-shotting techniques
- LED-backlit 3" diagonal color display with detailed 320 x 240 resolution that’s easy to see in full sunlight and from wide viewing angles
- Broadband Sounder™ detail easily identifies fish targets, bottom contour, structure detail, bottom hardness, thermoclines and more
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- Convenient Page selector menu with quick access to all features using one-thumb operation
- Multi-Window Display lets you quickly choose from pre-set page layouts - including a three-panel view
What’s in the Box
- Hook-3x Fishfinder
- Dual-frequency transducer
- Power cable
- Documentation pack
- Fuse holder (ATC blade)
- Fuse
Specifications
- Display Type: 256 color TFT LCD
- Backlight: LED (11 levels)
- Screen Size: 3.5” diagonal
- Screen Resolution: 320 x 240
- Transducer: Skimmer™ transom mount with temperature sensor
- Frequency: 83/200kHz
- Power Requirements: 12V DC
- Transmit Power: 180W (RMS)
- Dimensions: 3 11/16”W x 6 1/2”H x 1 27/32”D
- Power Requirement: 12V DC
- Voltage Input: 10 to 17V
- Amperage: 1.1A
- Fuse: 3A
- Waterproof Rating: IPX7
- Warranty: One year
Optional Accessories (Sold Separately)
| Accessories | Model |
|---|---|
| XT-20BL-20 foot extension cable | 11259322 |
| 7 pin Blue Connector to Bare Wires | 14706568 |
| ST-TBL Speed Temp Sensor | 14272777 |
Type
Fishfinder
Diagonal Screen Size
3.5 Inches
Dimensions
3.7" Width x 6.5" Height x 1.85" Depth
Display Color
Color
Display Shape
Vertical
Display Type
Backlit LED
Frequency
83/200kHz
Maximum Depth
1000'
Mount Type
Quick Disconnect
Resolution
320 x 240
Sonar
Down Imaging
,
Multi Frequency
Specific Transducer
Single-Frequency Transducer (Included)
Transmit Power
262 Watts
Type
Fishfinder
Warranty
One Year
Waterproof
Waterproof
