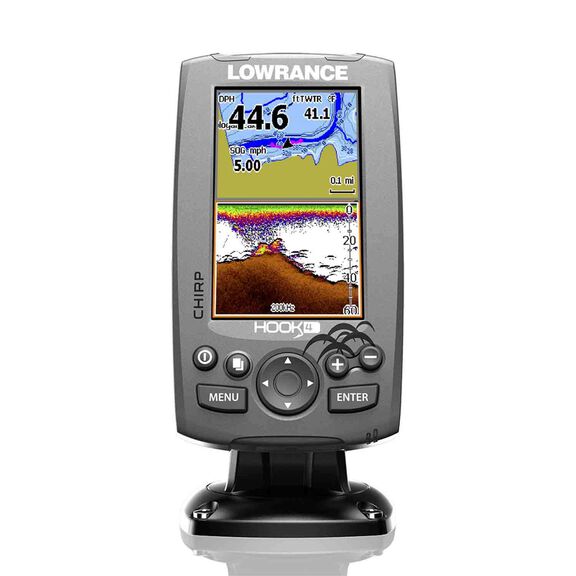

Hook-4 Fishfinder/Chartplotter Combo with CHIRP DownScan Transducer and Lake Insight™ PRO Charts
Top-of-the-line sonar technologies provide the best possible view of the environment beneath your boat.
Accurate CHIRP Sonar: It’s got CHIRP sonar built in, so you get a crisp view of fish, structure and the bottom. CHIRP provides more definition and better target separation than traditional sonar, giving you a clear view of what's down below. Enhanced sonar sensitivity, excellent target separation and superior noise rejection make seeing baitfish and gamefish targets easier. Full color LED-backlit displays are bright and clear in all lighting conditions, and all functions are controlled and accessed via a simple keypad.
Basemap with detailed lakes and rivers: A detailed World Reference basemap featuring more than 3,000 US lakes and rivers and coastal contours to 1,000'. You can also add a wide variety of detailed charts with the microSD card slot. If you've been waiting for lower prices on top-of-the-line technology, your wait is over.
Additional Maps: This device comes with Lake Insight Pro Cartography, which includes over 9,000 U.S. lakes and highly accurate depth contours, including 2,300 maps with 1-3 foot intervals. With over 100,000 named bodies of water and detailed shorelines, you will always have a clear view of what's under and around your boat. This technology brings you Fishing Hot Spots with over 200,000 points of interest in the lower 48 states. Additional depth contours can be added via crowd-sourced data generated by Lowrance, Simrad and B&G user communities.
Key Features
- CHIRP Sonar plus DownScan Imaging™: the power of today's leading fishfinder technologies combined to provide the best possible view beneath your boat
- Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
- TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint
- Internal GPS antenna: Highly accurate, built-in 10Hz GPS antenna
- Convenient Page selector menu with quick access to all features using one-thumb operation
- Multi-Window Display lets you quickly choose from pre-set page layouts - including a three-panel view
- microSD card slot for adding maps. Use your Insight Genesis™ custom maps created from your own sonar logs or compatible maps. Lake Insight® and Nautic Insight® PRO, Navionics® +, C-MAP MAX-N, Fishing Hot Spots® PRO, & Insight Genesis are all compatible with this technology.

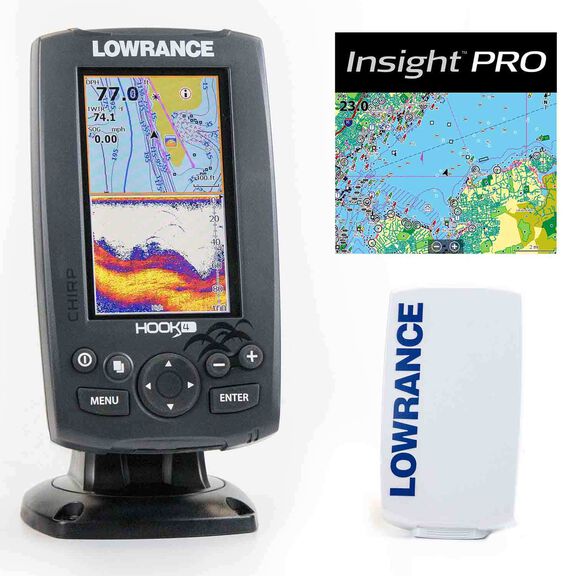

What’s in the Box
- Hook-4 Chartplotter/Fishfinder
- Transducer
- Power cable
- Documentation pack
- Fuse holder (ATC blade)
- Fuse
- Quality Lowrance protective cover
- Lake Insight Pro Map microSD card
Specifications
- Display Type: 16-bit color TFT LCD
- Backlight: LED (11 levels)
- Screen Size: 4.3” diagonal
- Screen Resolution: 480 x 272
- Transducer: Transom mount transducer with temperature
- Frequency: 455/800 kHz DownScan Imaging™, Mid/High CHIRP, 83/200kHz
- Power Requirements: 12V DC
- Transmit Power: 500W (RMS)
- Dimensions: 3 13/16”W x 6 5/8”H x 2 3/16”D
- Power Requirement: 12V DC
- Voltage Input: 10 to 17V
- Amperage: Typical: 1.1A
- Fuse: 3A
- Waterproof Rating: IPX7
- Warranty: One year
Optional Accessories (Sold Separately)
| Accessories | Model |
|---|---|
| XT-20BL-20 foot extension cable | 11259322 |
| 7 pin Blue Connector to Bare Wires | 14706568 |
| ST-TBL Speed Temp Sensor | 14272777 |
