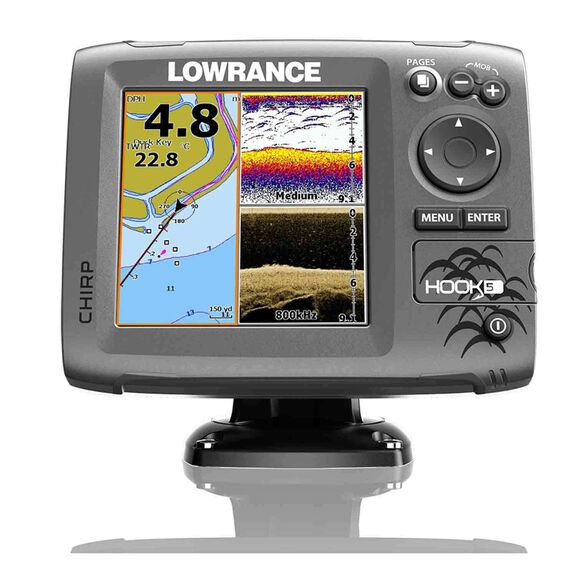

Hook-5 Fishfinder/Chartplotter with CHIRP Transducer, Nautic Insight™ Pro Charts

Top-of-the-line sonar technologies provide the best possible view of the environment beneath your boat.

Accurate CHIRP Sonar: It’s got CHIRP sonar built in, so you get a crisp view of fish, structure and the bottom. CHIRP provides more definition and better target separation than traditional sonar, giving you a clear view of what's down below. Enhanced sonar sensitivity, excellent target separation and superior noise rejection make seeing baitfish and gamefish targets easier. Full color LED-backlit displays are bright and clear in all lighting conditions, and all functions are controlled and accessed via a simple keypad.

Basemap with detailed lakes and rivers: A detailed World Reference basemap featuring more than 3,000 US lakes and rivers and coastal contours to 1,000'. You can also add a wide variety of detailed charts with the microSD card slot. If you've been waiting for lower prices on top-of-the-line technology, your wait is over.

Additional Cartography: This device comes with Nautic Insight Pro™ Cartography, which contains updated NOAA Electronic Navigational Charts and Marine Protected Areas. With widespread coverage and highly accurate contours, these bathymetric maps will help you safely navigate to any of the 200,000+ Fishing Hot Spots and Points-of-Interest included. Nautic Insight Pro provides map coverage for coasts along the lower 48 states, Alaska, Hawaii and the Caribbean.

Key Features

• CHIRP Sonar: the power of new and more accurate sonar to provide a better view beneath your boat
• Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly
• TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint
• Internal GPS antenna: Highly accurate, built-in 10Hz GPS antenna
• Convenient Page selector menu with quick access to all features using one-thumb operation
• Multi-Window Display lets you quickly choose from pre-set page layouts - including a three-panel view
• microSD card slot for adding maps. Use your Insight Genesis™ custom maps created from your own sonar logs or compatible maps. Lake Insight® and Nautic Insight® PRO, Navionics® +, C-MAP MAX-N, Fishing Hot Spots® PRO, & Insight Genesis are all compatible with this technology.

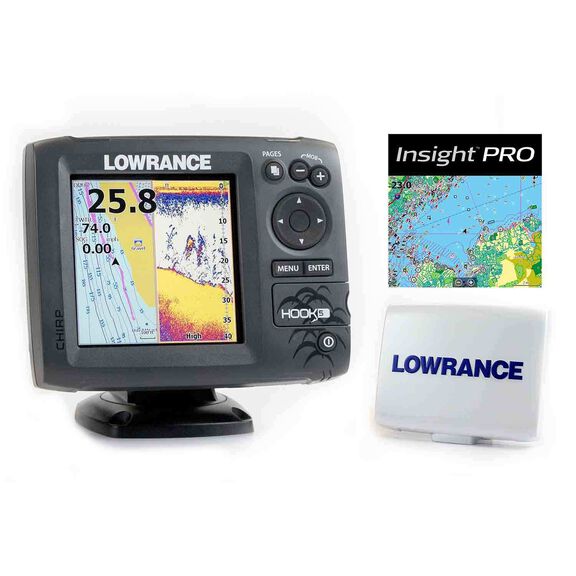

What’s in the Box

• Hook-5 Chartplotter/Fishfinder
• Dual-frequency Skimmer DSI Transducer
• Power cable
• Documentation pack
• Fuse holder (ATC blade)
• Fuse
• Nautic Insight Pro Map microSD card

Specifications

• Display Type: 16-bit color, VGA Solar Max™ Plus TFT
• Backlight: LED (11 levels)
• Screen Size: 5” diagonal
• Screen Resolution: 480 x 272
• Transducer: Mid/High/DownScan Imaging™
• Frequency: Mid/High CHIRP (83/200kHz)  + DownScan™ (455/800kHz)
• Power Requirements: 12V DC
• Transmit Power: 500W (RMS)
• Dimensions: 6 7/8”W x 5 3/8”H x 2 1/2”D
• Power Requirement: 12V DC
• Voltage Input: 10 to 17V
• Amperage: Typical: 1.1A
• Fuse: 3A
• Waterproof Rating: IPX7
• Warranty: One year
