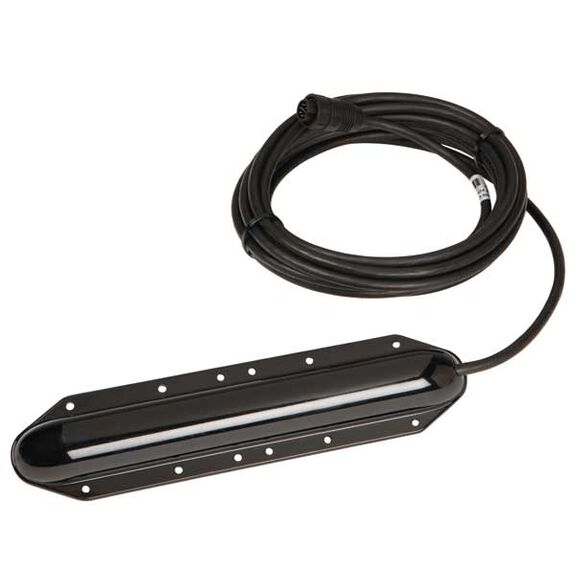

LSS-2 StructureScan HD Transducer

LSS-2 StructureScan HD Transducer image number null

LSS-2 StructureScan HD Transducer

5 out of 5 Customer Rating
  • In Stock
Ships from supplier, typically 2-3 weeks.

Vendor Shipping Details

This item will be fulfilled from the vendor. Delivery time varies – typically 2–3 weeks.

Restrictions: This item does not ship to a PO Box, APO, FPO, DPO or international address. Expedited shipping is not available.

West Marine will email you when your order ships from the vendor.

This item is currently unavailable.
Enter your email address to be added to the waitlist.
Model # 13617386 Mfg # 000-10802-001
Truck Freight

Truck Freight is used to ship items that exceed standard shipping limitations on weight and/or size. Delivery is only applicable within the contiguous United States. Additional shipping fees apply. Signature required for receipt of shipment.

Warning Hazard shipping
Item Can only Ship to Store
Frequently Bought Together

Enhanced imaging transducer generates three dedicated signals for photo-like images to the left, right and directly beneath your boat.

Nylon Transom-mount Transducer for LSS-2 StructureScan HD is a low profile, low-drag design with built-in water temp sensor, made for multiple mounting locations—transom, transom step or jackplate.


  • Style: Transom mount
  • Cable Length: 20' (requires 26mm diameter hole for plug)
  • Monitors: Depth and Temperature
  • Material: Plastic/stainless steel bracket
  • Transmit Power: 500W (RMS)
  • Frequency: Enhanced 455/800kHz
  • Max. Depth: Sidescan: 600' @ 455kHz; 200' @ 800kHz; Downscan: 300'
  • Max. Sidescan Speed: Max. 35mph; Marks Objects to 15mph; Optimum Speed 10mph or less
  • Max. Downscan Speed: Max. 55mph; Marks Objects to 35mph; Optimum Speed 10mph or less
  • Dimensions: 10 13/16"L x 2 5/8"W x 2 13/16"H
Frequency 455/800 kHz
Maximum Depth 600'
Specific Transducer Skimmer Transducer
Transmit Power 500 Watts
Type Transom Mount
Warranty One Year
