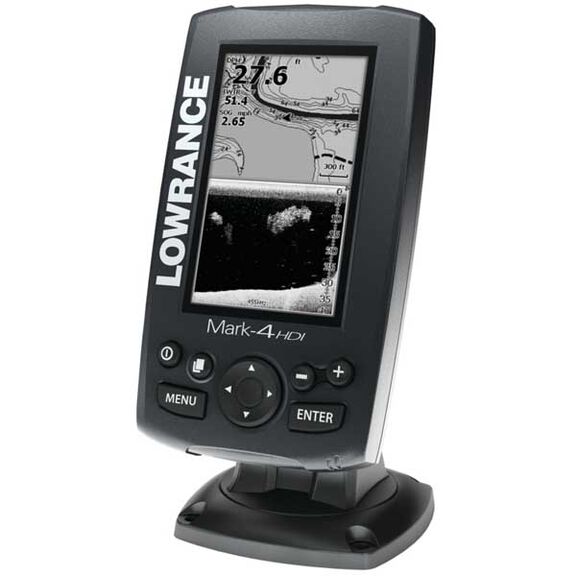

Mark-4 HDI 83/200 455/800kHz Fishfinder/Chartplotter Combo
Model #
15113707
Mfg #
000-11215-001
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Mark-4 HDI 83/200 455/800kHz Fishfinder/Chartplotter Combo
Model #
15113707
Mfg #
000-11215-001
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
−
+
All-NEW easy-to-use 4.3-inch fishfinder/chartplotter with Hybrid Dual Imaging that combines Broadband Sounder with DownScan Imaging technology and high-definition mapping.
The Mark-4 HDI combines a super-bright, LED-backlit grayscale display, a built-in GPS antenna with a full selection of today's top-selling fishfinder, and chartplotter features that are easy to access and operate -- all at a surprisingly affordable price.
Key Features:
- Lowrance-exclusive, high-resolution, 4.3-inch, LED-backlit display.
- Exclusive Hybrid Dual Imaging (HDI) - Broadband Sounder plus DownScan Imaging - the power of two award-winning technologies combined to provide the best possible view beneath your boat.
- Highly accurate, built-in GPS antenna plus a detailed U.S. map featuring more than 3,000 lakes and rivers and coastal contours to 1,000 feet.
- Optional chart upgrades include Lake Insight and Nautic Insight PRO and HD, Navionics Gold and HotMaps Premium, Fishing Hotspots PRO and Jeppesen C-Map Max-N.
- Create your own map from real sonar data that you record with Insight Genesis.
- DownScan Overlay technology overlays DownScan Imaging onto Broadband SounderAdvanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly.
- TrackBack to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint.
- New easy-to-use page selector menu with quick access to all features using one-thumb operation.
- Multi-Window Display lets you quickly and easily choose from pre-set page layouts - including a three-panel view with chart, Broadband Sounder and DownScan Imaging.
Specifications:
- Display Type: 16-level grayscale SuperTwist monochrome
- Screen Size: 4.3"diag.
- Horizontal Pixels: 272
- Vertical Pixels: 480
- Receiver Type: Internal high-sensitivity WAAS + EGNOS + MSAS
- Dimensions: 3 13/16"W x 6 5/8"H; 7 1/2"H with bracket
- Transducer: Transom Mount
- Transmit Power: 250W (RMS)
- Speed/Temp: Included
- NMEA Interface: VHF and autopilot through NMEA 0183
- Waterproof Rating: IPX7
