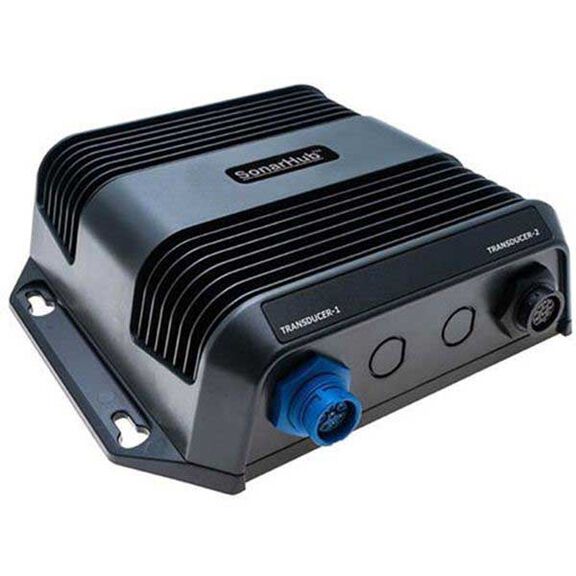

SonarHub™ Sounder Module with with LSS-2 HD Transom Mount Transducer

Compact SonarHub™ is an all-in-one solution for adding StructureScan^® HD and CHIRP sonar capabilities to compatible Lowrance fishfinder/chartplotter displays.

Plug-and-play, all-in-one network solution makes it easier than ever to identify productive fishing areas with connectivity to the latest Lowrance sonar technologies—including StructureScan HD, CHIRP and SpotlightScan™.

Key Features

• Compact all-in-one sonar module delivers StructureScan HD and CHIRP sonar technologies
• CHIRP sonar with Airmar^® TM150M transducer delivers extremely efficient pulse generation that provides improved target resolution and noise rejection, as well as wide coverage for perfect arches that clearly identify fish targets
• StructureScan HD offers best-in-class, side-scanning range and resolution, plus DownScan Imaging™ to provide crystal-clear, picture-like views of what’s beneath a boat
• Optional transducers include Airmar TM150M, single-channel CHIRP transducer and existing StructureScan HD transducers
• Compatible with SpotlightScan forward- and surround-scanning sonar transducers (SonarHub not required for SpotlightScan functionality with HDS Gen2 Touch displays)
• Plug-and-play compatibility with Lowrance HDS Gen1 (not including SpotlightScan and CHIRP sonar), HDS Gen2 and Gen2 Touch fishfinder/chartplotter models
• Three built-in Ethernet ports allow for quick and convenient networking without the need for an extra Ethernet networking module

Specifications

• Compatible Displays: Lowrance HDS Gen1, Gen2, Gen2 Touch, Simrad NSS Sport, NSS evo2, NSE, NSO, NSO evo2
• Transmit Power: Max 500W RMS (StructureScan® HD), 250W RMS (CHIRP)
• Frequency: 455/800 kHz (StructureScan HD), 40-60kHz, 85-145kHz, 130-210kHz (CHIRP), 50 kHz/83kHz/200kHz (Narrow Band)
• Maximum DownScan Depth: StructureScan: 300' @ 455/800KHz
  ; CHIRP: 3,500' (transducer dependent)
• Maximum SideScan Range: 300' per side
• Transmit Power: 500W RMS (StructureScan HD), 250W RMS (CHIRP)
• Voltage: 12/24V DC
• Data Interface: Ethernet
• Connectors: Ethernet: Three ports; Power: 4-pin power connector; Transducer Port 1: Blue 7-pin connector for CHIRP and narrow-band transducers; Transducer Port 2: Black 9-pin connector for use with StructureScan^® HD and SpotlightScan™ transducers
• Width: 7-1/8"
• Height: 2-3/16"
• Length: 8"
• Waterproof Rating: IPX7

LSS-2 HD Nylon Transom-mount Transducer

Enhanced imaging transducer generates three dedicated signals for photo-like images to the left, right and directly beneath your boat.

Nylon Transom-mount Transducer for LSS-2 StructureScan HD is a low profile, low-drag design with built-in water temp sensor, made for multiple mounting locations—transom, transom step or jackplate.

Specifications

• Style: Transom mount
• Cable Length: 20' (requires 26mm diameter hole for plug)
• Monitors: Depth and Temperature
• Material: Plastic/stainless steel bracket
• Transmit Power: 500W (RMS)
• Frequency: Enhanced 455/800kHz
• Max. Depth: Sidescan: 600' @ 455kHz; 200' @ 800kHz; Downscan: 300'
• Max. Sidescan Speed: Max. 35mph; Marks Objects to 15mph; Optimum Speed 10mph or less
• Max. Downscan Speed: Max. 55mph; Marks Objects to 35mph; Optimum Speed 10mph or less
• Dimensions: 10 13/16"L x 2 5/8"W x 2 13/16"H
