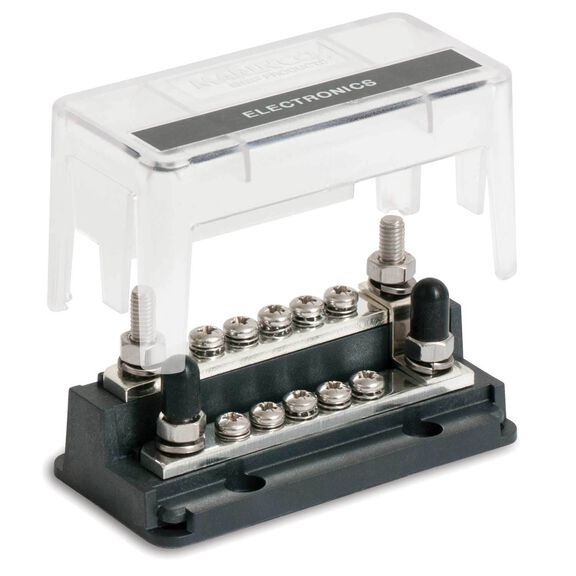

10-Circuit Pro Installer Z-Link Bus Bar
Model #
14981716
Mfg #
777-Z10W-200
$45.99
Orders placed by 3 PM EST typically ship the same day. Orders placed after this time will be processed the next business day.
Out Of Stock
Item out of stock get notified when back in stock:
Thank you!
We'll let you know when it's back in stock.
Quantity not available. Please adjust.
−
+
Complete Your Purchase
Space-saving bus bars offer almost unlimited installation flexibility. The high and low level bars can be bused together with Z-Link, or used as separate positive/negative bars. Compact footprint saves space. Clean installation—all cables can be run from one side of the Z-bar. Innovative clear covers insulate/protect on three sides, with “snap outs” for extra cable access as required. Tinned CDA102 copper conductors.
- Studs: Four 6mm (1/4") stainless steel studs, Ten 4mm (5/32") terminals with captive screws
- DC Voltage Rating: 50V
- DC Amperage Rating: 200A maximum per bar
- Dimensions: 3 7/8" x 1 7/8" x 2"
Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Capacity
DC: 200 Amps
Dimensions
2" Width x 1 7/8" Height x 3 7/8" Length
Mounting Hardware
Screw Fasteners (Sold Separately)
Type
Bus Bars
Warranty
Five Years
