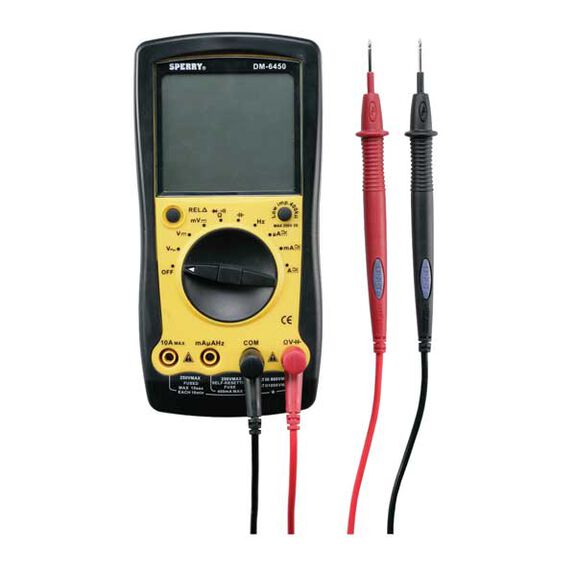

9-Function Digital Multimeter
Digital multimeters provide a cost-effective solution by combining multiple functions within the same tool.
Engineered to exceed the expectations of the professional electrician, the Sperry Instruments 9-Function Digital Multimeter is capable of testing 4V-750V AC and 400mV -1000V DC current. This unit also measures AC/DC amps, frequency (10Hz-10MHz), capacitance (40nF, 400nF, 4µF, 40µF, 100µF), resistance (400, 4K, 40K, 400K, 4M, 40M) and continuity (audible), plus performs diode testing. There is also a relative delta function to display a change in readings and a low impedance function to trace ghost voltage.
Features include improved audible and visual indicators, and an easy-to-read 3 1/2" LCD display. Utilizing auto ranging capabilities, the meter will determine the resolution based on the application selected without requiring manual adjustments and incorporates special test lead input icons designed into the display that prompt the user with correct lead placement for a desired test to ensure proper test results.
The durable housing is impact resistant and features a comfortable, protective rubber boot. Requires a single 9V battery (included) and designed with both an auto-off function to save battery life and a low battery indicator to ensure the user does not receive incorrect readings due to a low battery. CAT III (660V)/CAT II (1000V), cETLus and CE rated.
Key Features
- Measures AC/DC voltage, AC/DC current, frequency, capacitance, resistance, diode test, and continuity
- Test lead input icons on the display remind the user of correct lead placement based upon the function selected
- Large LCD display with 3 1/2" digits for easy viewing
- Relative Delta displays change in readings
- Low impedance function to trace ghost voltage
- Impact-resistant housing with protective rubber boot
- Low battery indicator
- Automatic off to conserve battery power
- Requires one 9V battery (included)
Functions
- AC Volts
- DC Volts
- AC Current
- DC Current
- Frequency
- Capacitance
- Resistance
- Diode Test
- Continuity Test (audible)
Specifications
- Range Setting: Auto
- Total Functions: 9
- Total Ranges: 10
- Display Type: Digital
- Display Count: 3999
- DC Voltage: 400mV, 4V, 40V, 400V, 1000V
- AC Voltage: 4V, 40V, 400V, 750V
- DC Current: 400μA, 4000μA, 40mA, 400mA, 4A, 10A
- AC Current: 400uA, 4000uA, 40mA, 400mA, 4A, 10A
- Frequency: 10Hz–10MHz
- Capacitance: 40nF, 400nF, 4μF, 40μF, 100μF
- Resistance: 400, 4K, 40K, 400K, 4M, 40M
- Test Lead Length: 36"
- Battery Type: (1) 9V (included)
- Operating Temperature: 32°F (0°C) to 104°F (40°C)
- Dimensions: 7"L x 3 3/8"W x 1 1/2"D
- Approvals: cETLus, CE, RoHS compliant
- CAT Rating: CAT III 600V, CAT II 1000V
- Warranty: Five years
Included in the box
- Digital Multimeter
- One set of 36" test leads
- One 9V battery
- One 10A fuse
- Owner's Manual
